GPSI,GPSII,GPSII NEXWAY,MAXIEZ Summary of Common Elevator Door Motor Models
1. Applicable Elevator Series
GPSI
GPSII
GPSII NEXWAY
MAXIEZ
2. Common Door Motor Model Categories
1) EMB Series (AC / Synchronous Door Motors)
EMB-80-4
Voltage: 113V
Power: 80W
Speed: 600 r/min
EMB-48-8
Type: Permanent Magnet Synchronous (SE-BL door motor)
Reference Model: YA171B911G

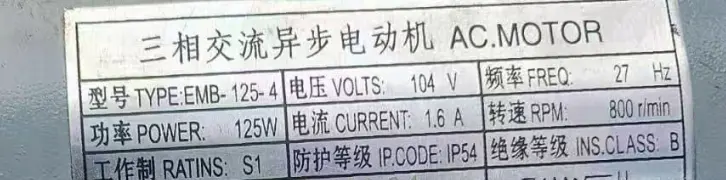

EMB-125-4
Type: Three-phase AC Asynchronous Motor
Reference Model: YA125B882G15
2) SE-JR Series
SE-JR
Voltage: 113V
Speed: 600 r/min
SE-JR 63M-4
Speed: 1400 r/min
3) YVP Series
YVP90-6
Voltage: AC 220V
4) YTJ Series (Permanent Magnet Synchronous Door Motors)
YTJ031-14
Type: Permanent Magnet Synchronous Motor
YTJ031-15
Type: Permanent Magnet Synchronous Motor
YTJ031-17
Type: Permanent Magnet Synchronous Door Motor
3. Ordering Requirements (Key Parameters)
When ordering a door motor, please provide the nameplate information or the following parameters:
Model
Voltage
Power
Current
Speed
4. Notes
Different door motor models may correspond to different manufacturer codes (such as YA codes).
The same model may have different versions; always refer to the nameplate for accuracy.
Permanent magnet synchronous motors and asynchronous motors are not directly interchangeable; compatibility with the control system must be confirmed.
