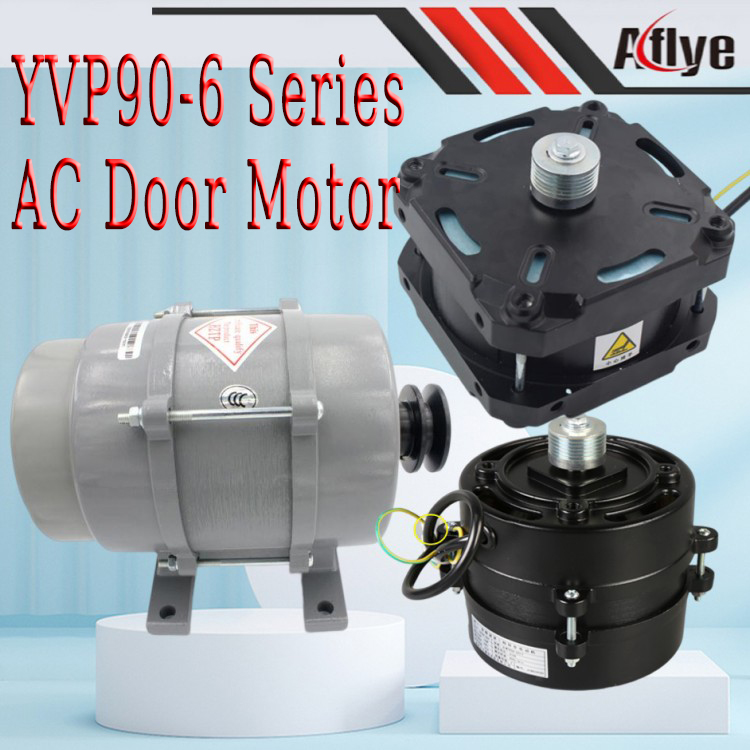

YVP90-6 Series Elevator Door Motor s are three-phase variable frequency asynchronous motors, which achieves stepless speed regulation of the motor by changing the frequency. Adopting insulation grade B or F, absorbing the advantages of similar products, it has the characteristics of simple structure, high power index, low noise, small vibration, strong overload capacity, stable operation, safety and reliability, and convenient use and maintenance. It is an ideal driving component for the elevator industry door opener motor.
The installation method can be divided into: F-type: end cover flange positioning installation;
Type J: Four hole installation at the foot of the end cover;
FD type: end cover flange stop positioning installation, shaft extension with multi wedge groove type.
JD type: Four hole installation at the foot of the end cover, with multi wedge groove type shaft extension.
JF type: Four hole installation at the foot of the end cover, and positioning installation at the end cover flange stop.
| Model No. | Votalge | Current | Power | Frequency | Rated Speed |
| YVP90-6 | 220V | 1A | 70W | 50Hz | 920r/min |
| YVP90-6B | 220V | 0.5A | 70W | 50Hz | 920r/min |
| YVP90-6B1 | 220V | 0.4A | 50W | 50Hz | 920r/min |
| YVP90-6D | 220V | 0.45A | 80W | 50Hz | 920r/min |
| YVP90-6N | 220V | 0.6A | 180W | 50Hz | 920r/min |
| YVP90-6H | 220V | 0.85A | 280W | 50Hz | 920r/min |
| YVP90-6T | 220V | 1.25A | 380W | 50Hz | 920r/min |
| YVP90-6S | 220V | 1A | 100W | 50Hz | 920r/min |
| YVP90-6S4 | 310V | / | 70W | 50Hz | 920r/min |
| YVP90-6S4-3 | 310V | / | 70W | 50Hz | 920r/min |
| YVP90-6S4-4 | 310V | / | 150W | 50Hz | 920r/min |
