Replacement Solution for MMR Elevator Door Sensor Switchs BEN10M-TFR
Elevator Photoelectric Sensor

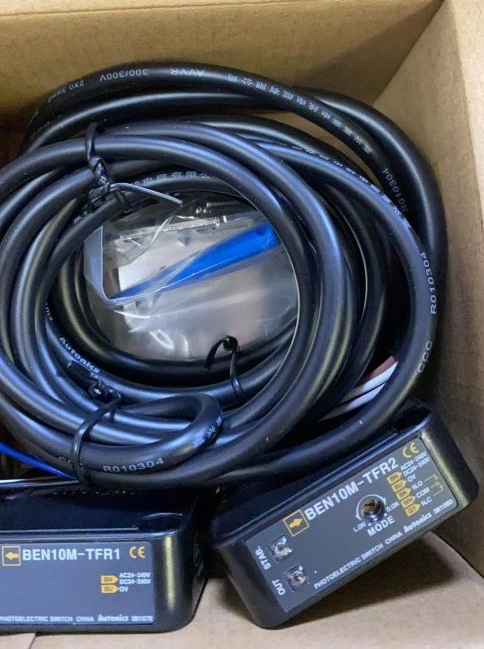

BEN10M-TFR1 ，BEN10M-TFR2

Power: 24-240VAC 24-240VDC

Technical Specification：

Detection object：Opaque object MIN D16mm Light Source

Light Source：Infrared LED(850NM)

Response Time：MAX20MS   Current Consumption (Emitter)MAX. 4VA

Sensing Distance：10M     Cable Length 2-5M,

Control Output: Relay output

There are two replacement methods.

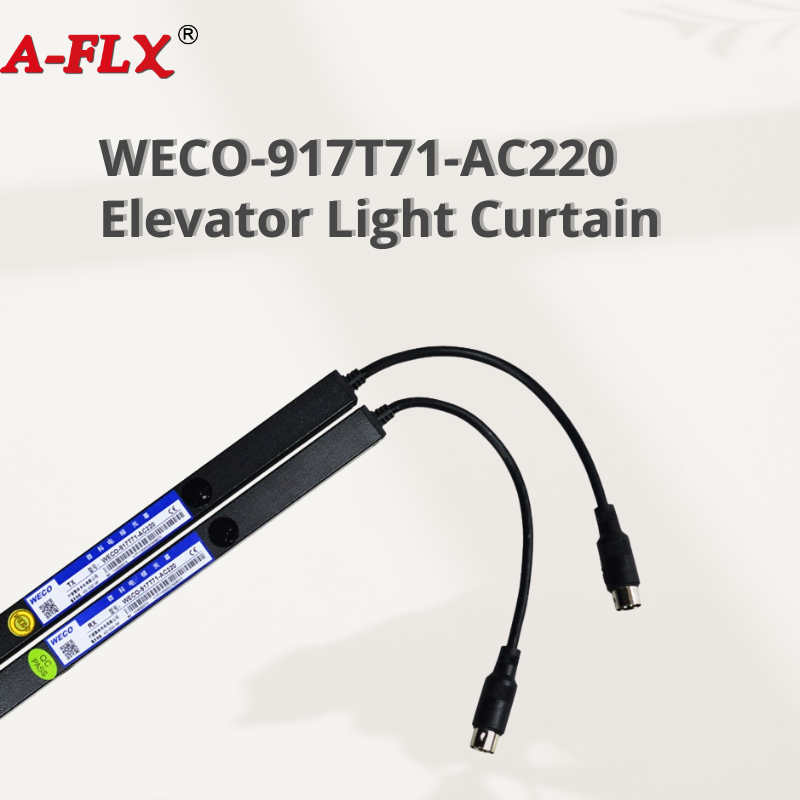

1. Replace the 957T71 Elevator Light Curtain

2. Replace with safety edge + light curtain

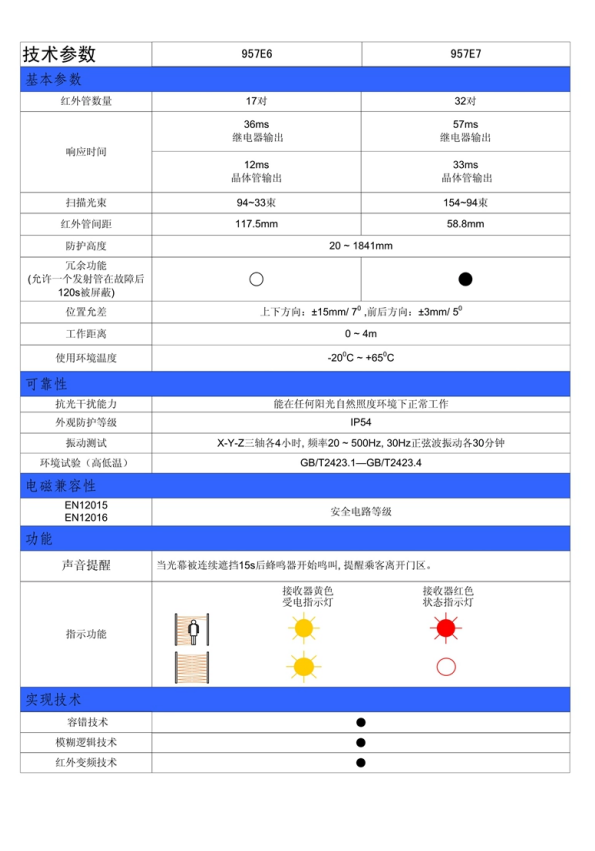

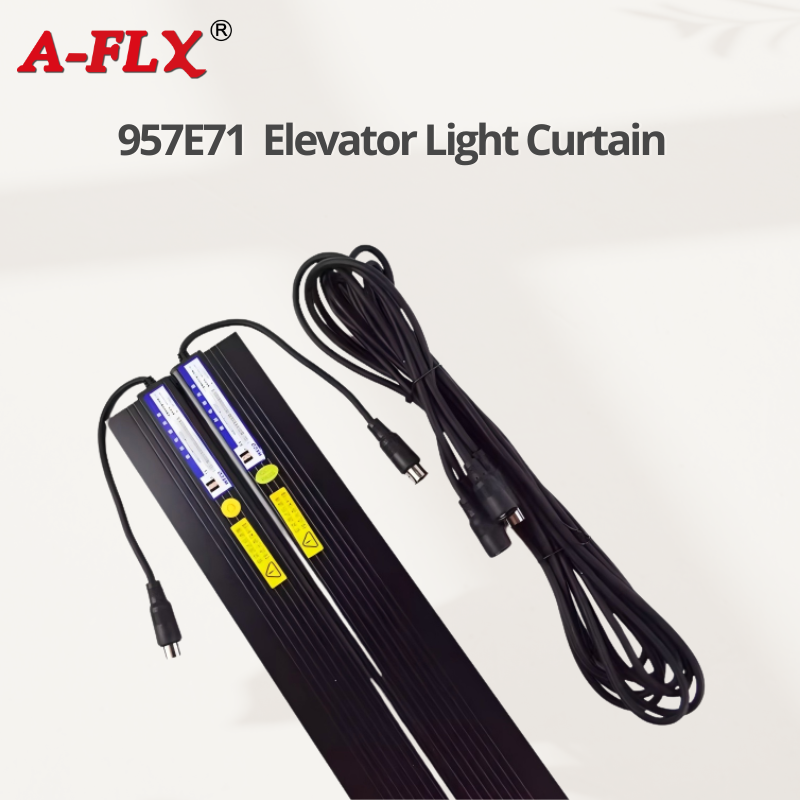

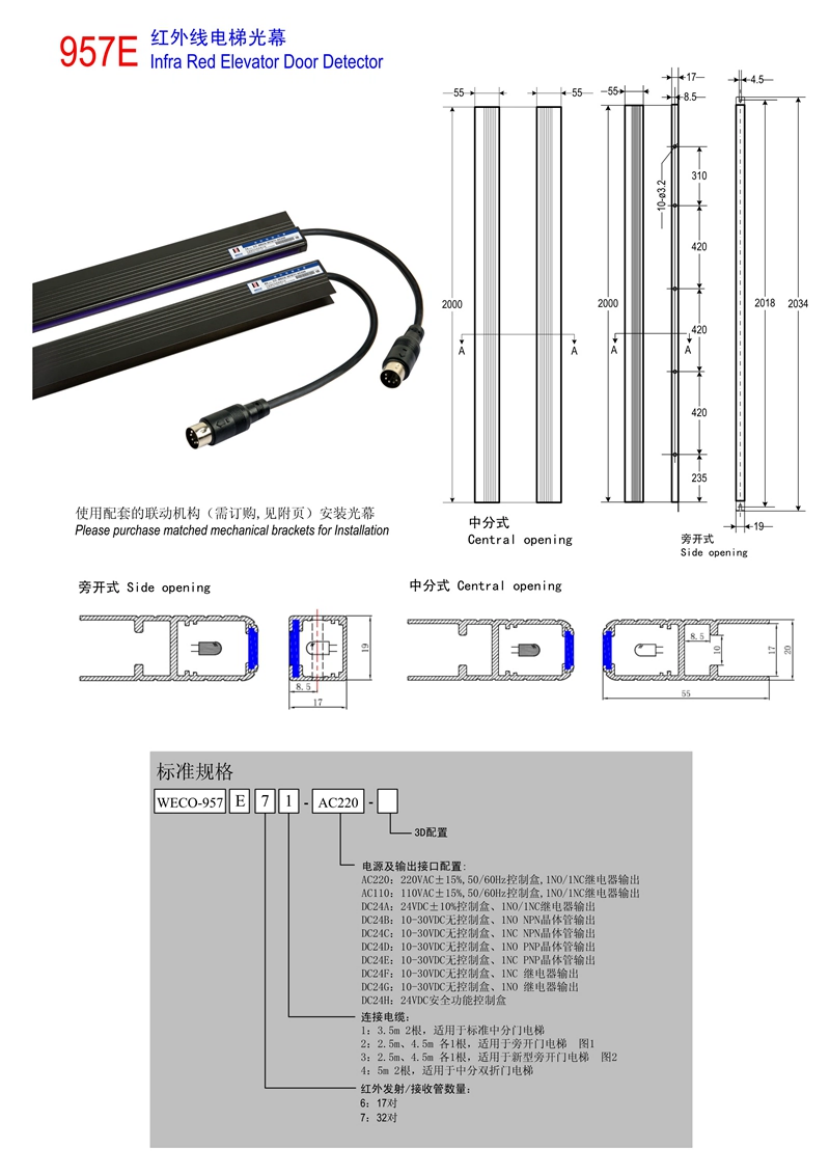

SIGMA-specific 2-in-1 type (Model 957E71, length 2100mm, usually used for 2000mm doors)
Model: 957E71
