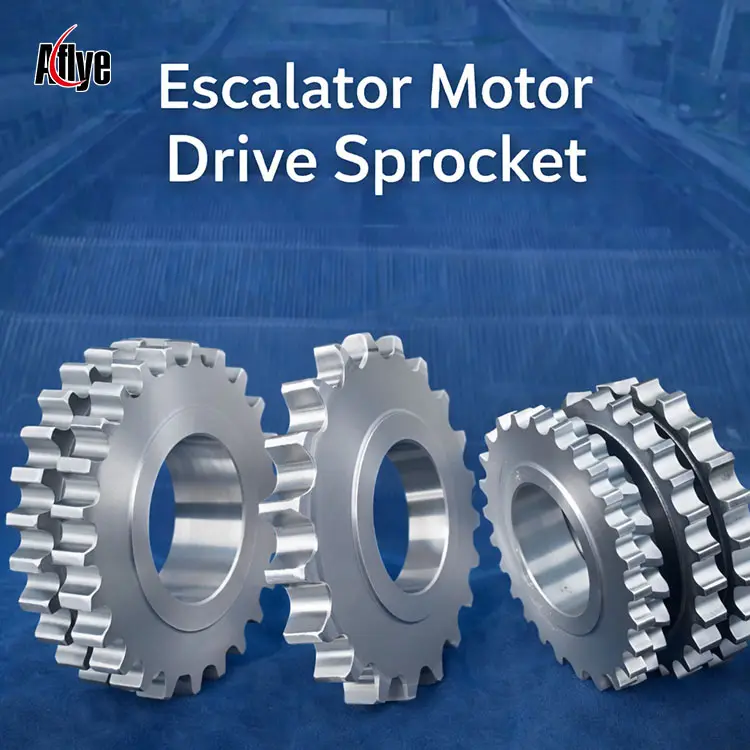

How to Determine Wear Standards for Escalator Drive Sprockets
In an escalator drive system, the drive sprocket is a critical component that transfers power from the motor to the drive chain. Its condition directly affects the smoothness, reliability, and safety of escalator operation. Once abnormal wear occurs, minor issues may include noise and vibration, while severe wear can lead to chain skipping, sudden stops, or even safety accidents.
Therefore, understanding how to evaluate drive sprocket wear is essential for maintenance and safety management.
1. Tooth Profile Changes: The Most Direct Indicator
Under normal conditions, escalator drive sprocket teeth should be full, symmetrical, and smoothly contoured.If you observe the following conditions, it indicates significant wear:
Sharpened or pointed tooth tips
Thinned tooth roots
Elongated or deformed tooth surfaces
Continued use under these conditions will accelerate drive chain wear and increase failure risk.
2. Noticeable Increase in Noise and Vibration
When the drive sprocket is worn, proper meshing between the chain and sprocket is compromised. This often results in:
Metallic friction noise
Periodic abnormal sounds
Increased vibration during operation
These symptoms usually indicate uneven or mismatched wear between the sprocket and the chain.
3. Frequent Abnormal Chain Tension Adjustments
During routine maintenance, if the drive chain requires frequent tension adjustments and quickly becomes loose again, the issue may not be the chain itself.
In many cases, uneven tooth wear on the drive sprocket causes inconsistent load distribution, leading to abnormal chain slackening.
4. Unsynchronized Wear Between Chain and Sprocket
Industry experience shows that drive chains and sprockets should wear and be replaced together.
Installing a new chain on a worn sprocket often causes:
Chain jumping
Uneven wear
Accelerated damage to the new chain
This mismatch is a key indicator that the drive sprocket has reached the end of its service life.
5. Service Life and Operating Environment
In high-traffic and continuous-operation environments—such as shopping malls and metro stations—drive sprockets wear significantly faster.
It is strongly recommended to inspect and evaluate sprocket condition during major overhauls or whenever the drive chain is replaced.
A-FLY — Professional Supplier of Escalator Drive System Components
As an experienced elevator and escalator spare parts supplier, A-FLY provides high-wear-resistance, high-precision:
Related transmission components
Our products are widely compatible with major escalator systems and support global projects and OEM/ODM customization.
Conclusion
Although the escalator drive sprocket may seem like a minor component, it plays a vital role in the stability of the entire drive system.
By accurately assessing wear conditions and replacing components in a timely manner, maintenance teams can significantly reduce failure rates and extend overall escalator service life.
