Elevator Screen Common Styles & Specifications
The elevator screen is an essential component of modern elevator information systems. It is widely used in residential buildings, commercial complexes, office towers, hotels, and other public venues. These screens display floor information, operating status, advertisements, weather updates, time, and more—enhancing user experience and contributing to smarter, more intelligent elevator systems.
Common Style Categories:

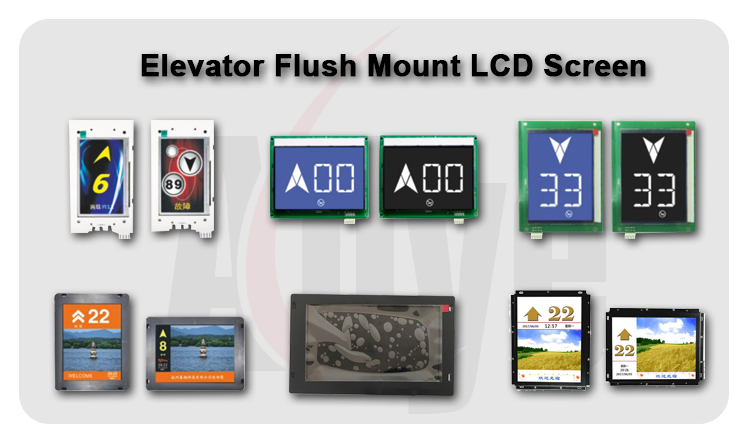

1.Elevator Flush Mount LCD Screen
Features: Installed inside the elevator car or on landing door jamb; features a compact structure with a sleek and modern appearance.
Applications: Suitable for newly installed elevators or customized projects; provides a clean and integrated display.
Common Specifications:7″, 8″, 10.1″, 12.1″, 15.6″, 17″
Common resolutions: 1024×600 / 1280×800 / 1920×1080
Aspect ratio: 16:9 or 4:3
Material: Metal frame + tempered glass panel
2. Wall-mounted Elevator Screen
Features: Flexible installation; ideal for retrofit projects or elevators where flush mounting is not feasible.
Applications: Commonly used for upgrading and renovating old elevators; easy to install and maintain.
Common Specifications:10.1″, 13.3″, 15.6″
Can be installed with a mounting bracket or directly onto the wall
Multiple interface options: supports HDMI / VGA / USB / Serial communication, etc.
3. Multimedia Display Screen
Features: Displays not only floor information but also advertisements, news, weather, and other multimedia content.
Applications: Ideal for commercial buildings, residential complexes, and public venues where screens serve both informational and promotional purposes.
Common Specifications:15.6″, 18.5″, 21.5″, 23.8″
Resolution: Full HD 1080P
Optional touch screen functionality for interactive advertising systems
Supports intelligent features such as scheduled power on/off and remote content publishing

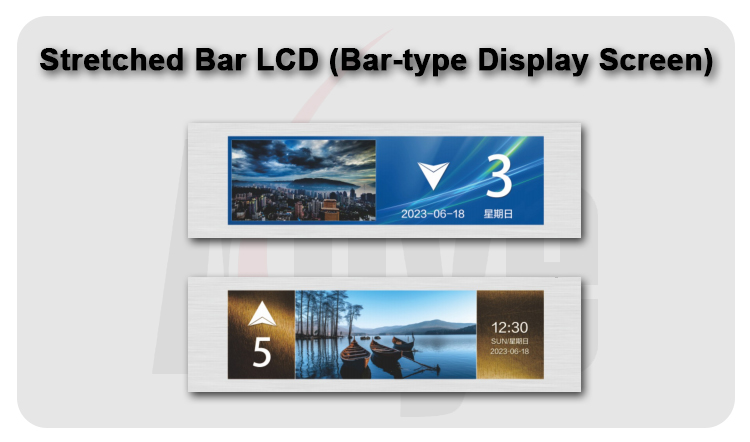

4. Stretched Bar LCD (Bar-type Display Screen)
Features: Ultra-wide aspect ratio; ideal for installation above elevator doors or in narrow spaces.
Applications: Stylish and space-saving; suitable for high-end projects or custom-branded elevators.
Common Specifications:4.3″, 6.2″, 19.1″, 24″ stretched LCD screens
Aspect ratios: 32:9 / 16:4 / custom size ratios
Resolutions: 1280×320 / 1920×540, etc.
Optional Features:
Multi-language display
Elevator operation status integration (direction, fault alerts, floor announcements)
Video and image/text advertisement playback
Auto-brightness adjustment (light adaptive)
Remote content management system (via 4G / Wi-Fi / LAN)
Customizable front frame and logo printing
Face recognition
Password unlock
Fingerprint unlock
Application Scenarios:
Commercial complexes
Subway stations and elevator transfer hubs
Residential elevator renovation projects
Hotels and premium office buildings
Hospitals, schools, government buildings, etc.
