Steel Belt Type Villa Elevator
Highly secure. Low energy consumption,energy-saving and environment-protection.Polyurethane material layer needs no lubrication.
Service life is 2 to 3 times higher than that of traditional wire rope.lt is easily bendable.It enlarges the contact area with drive wheel.lt is more effective energy-saving.
| Load（kg) | 260 | 320 | 400 |
| Rated speed(m/s_) | 0.4 | 0.4 | 0.4 |
| Cor size(mm) | 900*1000 | 950*1200 | 1100*1200 |
| Door-opeining size(mm) | 650*2000 | 700*2000 | 750*2000 |
| Door opening mode | Center | Center | Center |
| Shaft size(mm) | 1500*1300 | 1550*1500 | 1700*1500 |
| Pit depth(mm) | 300 | 300 | 300 |
| Overhead height(mm) | 2800 | 2800 | 2800 |
Note: The above dimensions are for design reference. The specific dimensions are subject to the civil engineering drawings provided when signing the contract.
Landing Door

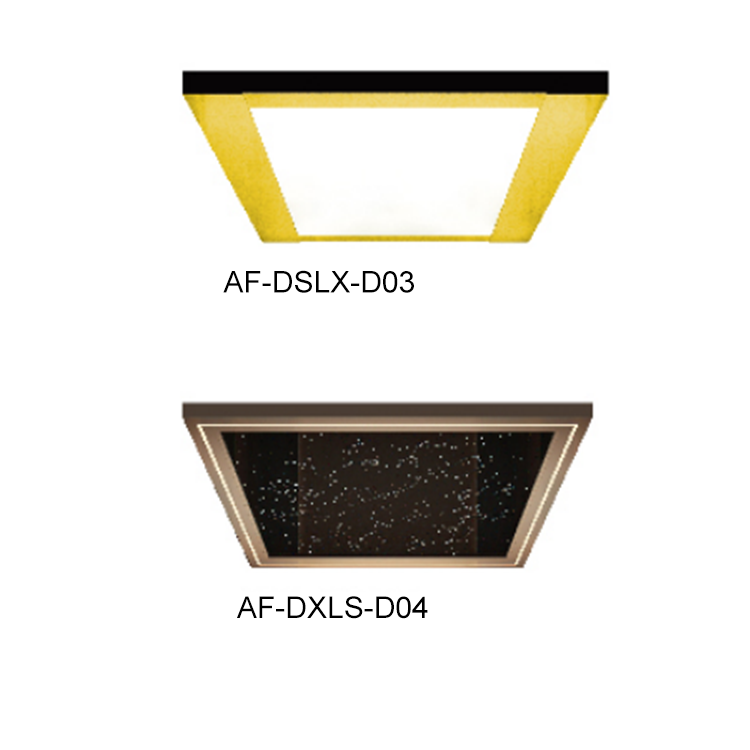

Ceiling
Floor
Handrail
