Dumbwaiter
lt deducts safe, mute, steady, cautious travel
Dumbwaiter elevator provides small freight elevators in various buildingswith the prompt, economical and convenient vertical transport. It greatly saves time andlabor resources. lt is widely applicable for delivering food and drinks, dining ware, dailycommodities etc. in the hotel, restaurant, bank, hospital and so on.
Advantage：
1.Small spce, without a strong civil capacity, both old and new buildings canachieve the perfect, economical design.
2.The use of advanced PC, the control module to the elevator runssmoothly. precise leveling.
3.Humanized design makes the operation more flexible.
4.Because of its load feature, can be divided into windows desktop andwheeled.
5.This series of dumbwaiter elevator safety. practical, elegant, quiet,flexibleoperation and easy maintenance, with a variety of standard series ofvarieties and specifications,can be designed according to user needs.
| Load （kg) |
Speed (m/s) |
Car Size | Dooor-open Size | Hoistwaysize | Overhead Height (OH) |
Pit Death (PP) |
|
| Inner Size A*B | Door Net Oppning C | Net Door Height HH | X*Y | ||||
| 100 | 0.4 | 700*725 | 700 | 800 | 1250*900 | 3700 | 750 |
| 200 | 0.4 | 950*975 | 950 | 1000 | 1500*1150 | 3800 | 750 |
| 250 | 0.4 | 1000*1000 | 1000 | 1200 | 1550*1200 | 4000 | 750 |
| 300 | 0.4 | 1000*1000 | 1000 | 1200 | 1550*1200 | 4000 | 750 |
Note: The above dimensions are for design reference only. The specific dimensions are subject to the taxi construction drawings provided when signing the contract.
Rich specifications and models

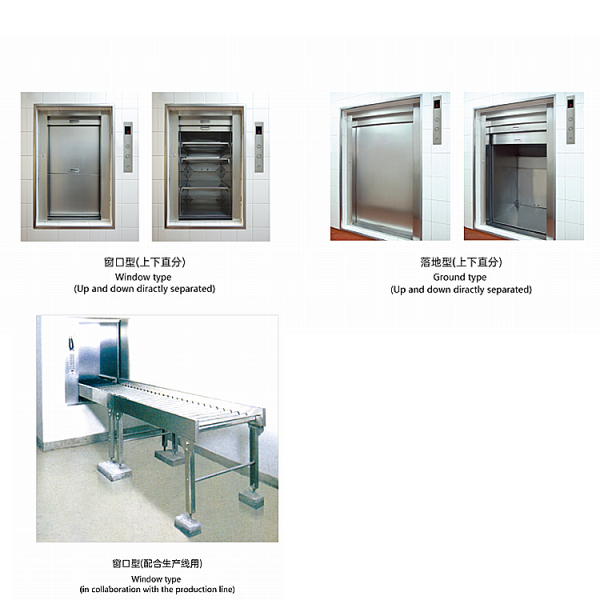

Load range: 100kg-300kg.Door modes can be divided into windowsill type which is convenient for direct entryloxit of the goods and foor typewhich is easy for goods cart.
Standard collocation
1.The control system chooses the micro-computer / PLC control.
2.lt employs T50 guide rail.
3.lt adopts the section material for the door guide rail.
4.lt adopts the hairline stainless steel for the car, hoistway door,jamb, calling panel.
5.lt employs YJ120K serial singlle speed tranction machine.
6.lt adopts the safety contact switch for the landing door interlocking.
7.various landing doors have been allocated with the locking device,it has the duall security protection.
8.Exterior call with floor indication, door open ‘ shut conditiondisplay, arrivall prompt and floor selection indication.
