| Suspension | 2：1/4:1/1：1 |
| Voltage | 380V |
| Ploe | 32 |
| Rating | S5（40%） |
| INS.Class | F |
| IP Code | IP41 |
| Brake | DC110V 2×2A |
| Max.Static Load | 6000kg |
| Weight | 580kg |

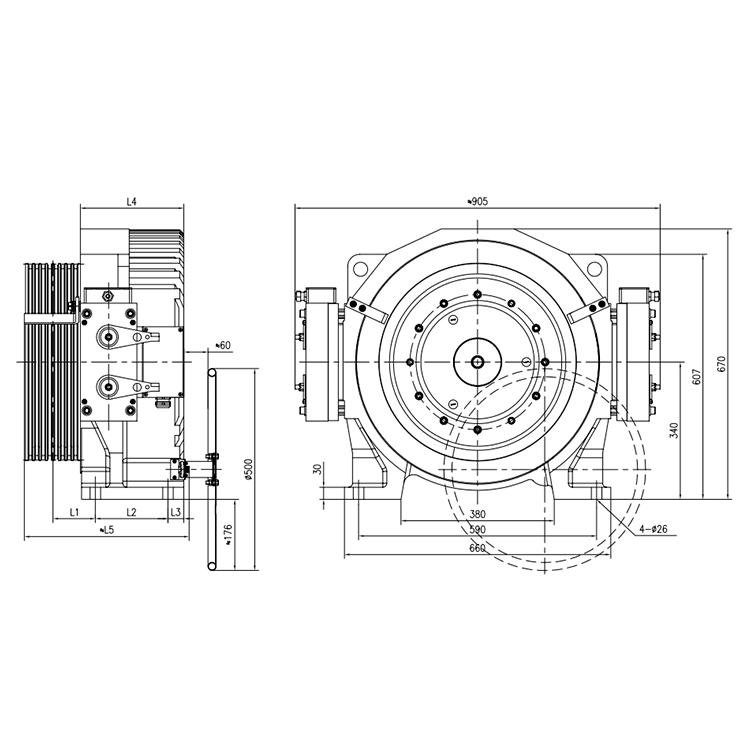

| Specification | Load (kg) | Lift Speed (m/s) | Sheave Diam (mm) | Rope Sheave (mm) | Current (A) | Torque (Nm) | Rated Speed (rpm) | Frequency (Hz) | Power (kW) | Length L1 | Length L2 | Length L3 | Length L4 | Length L5 |
| Suspension2:1 | ||||||||||||||
| GTW10X-111P0M | 1150 | 1.0 | φ485 | 6×φ10×16 | 17.4 | 910 | 79 | 21.1 | 7.5 | 105 | 150 | 35 | 222 | 375 |
| GTW10X-111P5M | 1.5 | 26.5 | 910 | 118 | 31.5 | 11.2 | ||||||||
| GTW10X-111P6M | 1.6 | 26.5 | 910 | 126 | 33.6 | 12 | ||||||||
| GTW10X-111P7M | 1.75 | 29.2 | 910 | 138 | 36.8 | 13.1 | ||||||||
| GTW10X-112P0M | 2.0 | 33.3 | 910 | 158 | 42.1 | 15.1 | ||||||||
| GTW10X-112P5M | 2.5 | 41.2 | 910 | 197 | 52.5 | 18.8 | ||||||||
| GTW10X-121P0M | 1250 | 1.0 | φ485 | 6×φ10×16 | 18.9 | 990 | 79 | 21.1 | 8.2 | 105 | 150 | 35 | 222 | 375 |
| GTW10X-121P5M | 1.5 | 28.8 | 990 | 118 | 31.5 | 12.2 | ||||||||
| GTW10X-121P6M | 1.6 | 28.8 | 990 | 126 | 33.6 | 13.1 | ||||||||
| GTW10X-121P7M | 1.75 | 31.8 | 990 | 138 | 36.8 | 14.3 | ||||||||
| GTW10X-122P0M | 2.0 | 36.2 | 990 | 158 | 42.1 | 16.4 | ||||||||
| GTW10X-122P5M | 2.5 | 44.8 | 990 | 197 | 52.5 | 20.4 | ||||||||
| GTW10X-131P0AM | 1350 | 1.0 | φ410 | 7xφ10×16 | 21.3 | 910 | 93 | 24.8 | 8.9 | 112 | 150 | 35 | 222 | 390 |
| GTW10X-131P5AM | 1.5 | 30.8 | 910 | 140 | 37.3 | 13.3 | ||||||||
| GTW10X-131P6AM | 1.6 | 36.3 | 910 | 149 | 39.7 | 14.2 | ||||||||
| GTW10X-131P7AM | 1.75 | 36.3 | 910 | 163 | 43.5 | 15.5 | ||||||||
| GTW10X-132P0AM | 2.0 | 42.4 | 910 | 186 | 49.6 | 17.7 | ||||||||
| GTW10X-131P0 | 1350 | 1.0 | φ485 | 7×φ10×16 | 19.3 | 1070 | 79 | 21.1 | 8.9 | 105 | 180 | 39 | 256 | 409 |
| GTW10X-131P5 | 1.5 | 29.5 | 1070 | 118 | 31.5 | 13.2 | ||||||||
| GTW10X-131P6 | 1.6 | 29.5 | 1070 | 126 | 33.6 | 14.1 | ||||||||
| GTW10X-131P7 | 1.75 | 32.2 | 1070 | 138 | 36.8 | 15.5 | ||||||||
| GTW10X-132P0 | 2.0 | 37 | 1070 | 158 | 42.1 | 17.7 | ||||||||
| GTW10X-132P5 | 2.5 | 45.8 | 1070 | 197 | 52.5 | 22.1 | ||||||||
| GTW10X-161P0AM | 1600 | 1.0 | φ410 | 8×φ10×16 | 26 | 1070 | 93 | 24.8 | 10.4 | 112 | 150 | 35 | 222 | 390 |
| GTW10X-161P5AM | 1.5 | 35.6 | 1070 | 140 | 37.3 | 15.7 | ||||||||
| GTW10X-161P6AM | 1.6 | 41.2 | 1070 | 149 | 39.7 | 16.7 | ||||||||
| GTW10X-161P7AM | 1.75 | 41.2 | 1070 | 163 | 43.5 | 18.3 | ||||||||
| GTW10X-162P0A | 1600 | 2.0 | φ410 | 8×φ10×16 | 45.5 | 1070 | 186 | 49.6 | 20.8 | 112 | 180 | 39 | 256 | 424 |
| GTW10X-161P0 | 1600 | 1.0 | φ485 | 8xφ10×16 | 22.8 | 1270 | 79 | 21.1 | 10.5 | 105 | 180 | 39 | 256 | 409 |
| GTW10X-161P5 | 1.5 | 35.6 | 1270 | 118 | 31.5 | 15.7 | ||||||||
| GTW10X-161P6 | 1.6 | 35.6 | 1270 | 126 | 33.6 | 16.8 | ||||||||
| GTW10X-161P7 | 1.75 | 38.7 | 1270 | 138 | 36.8 | 18.4 | ||||||||
| GTW10X-162P0 | 2.0 | 44.5 | 1270 | 158 | 42.1 | 21 | ||||||||
| GTW10X-162P5 | 2.5 | 55.7 | 1270 | 197 | 52.5 | 26.2 | ||||||||
| GTW10X-201P0A | 2000 | 1.0 | φ410 | 9xφ10×16 | 28.4 | 1270 | 93 | 24.8 | 12.4 | 112 | 180 | 39 | 256 | 424 |
| GTW10X-201P5A | 1.5 | 44.1 | 1270 | 140 | 37.3 | 18.6 | ||||||||
| GTW10X-201P6A | 1.6 | 44.1 | 1270 | 149 | 39.7 | 19.8 | ||||||||
| GTW10X-201P7A | 1.75 | 47.3 | 1270 | 163 | 43.5 | 21.7 | ||||||||
| GTW10X-202POA | 2.0 | 54.4 | 1270 | 186 | 49.6 | 24.7 | ||||||||
| Suspension4:1 | ||||||||||||||
| GTW10X-300P5AM-4 | 3000 | 0.5 | φ410 | 8×φ10×16 | 24.6 | 941 | 93 | 24.8 | 9.2 | 112 | 150 | 35 | 222 | 390 |
| GTW10X-301POAM-4 | 1.0 | 43.8 | 941 | 186 | 49.6 | 18.3 | ||||||||
| GTW10X-300P5-4 | 0.5 | φ485 | 8×φ10×16 | 20.5 | 1113 | 79 | 21.1 | 9.2 | 105 | 180 | 39 | 256 | 409 | |
| GTW10X-301P0-4 | 1.0 | 39.0 | 1113 | 158 | 42.1 | 18.4 | ||||||||
| Suspension1:1 | ||||||||||||||
| GTW10X-61P0M-1 | 630 | 1 | φ485 | 6×φ10×16 | 10.9 | 990 | 39 | 10.4 | 4 | 105 | 150 | 35 | 222 | 375 |
| GTW10X-61P5M-1 | 1.5 | 15.5 | 990 | 59 | 15.7 | 6.1 | ||||||||
| GTW10X-61P6M-1 | 1.6 | 17.7 | 990 | 63 | 16.8 | 6.5 | ||||||||
| GTW10X-61P7M-1 | 1.75 | 17.7 | 990 | 69 | 18.4 | 7.2 | ||||||||
| GTW10X-62POM-1 | 2 | 18.9 | 990 | 79 | 21.1 | 8.2 | ||||||||
| GTW10X-62P5M-1 | 2.5 | 23.6 | 990 | 99 | 26.4 | 10.3 | ||||||||
| GTW10X-81P0-1 | 800 | 1.0 | φ485 | 8xφ10×16 | 12.8 | 1270 | 39 | 10.4 | 5.2 | 105 | 180 | 39 | 256 | 409 |
| GTW10X-81P5-1 | 1.5 | 18.5 | 1270 | 59 | 15.7 | 7.8 | ||||||||
| GTW10X-81P6-1 | 1.6 | 22 | 1270 | 63 | 16.8 | 8.4 | ||||||||
| GTW10X-81P7-1 | 1.75 | 22 | 1270 | 69 | 18.4 | 9.2 | ||||||||
| GTW10X-82PO-1 | 2.0 | 22.8 | 1270 | 79 | 21.1 | 10.5 | ||||||||
| GTW10X-82P5-1 | 2.5 | 30 | 1270 | 99 | 26.4 | 13.2 | ||||||||
