XAA21751X1/XAA21751X3 Elevator Lifts Leveling Sensor

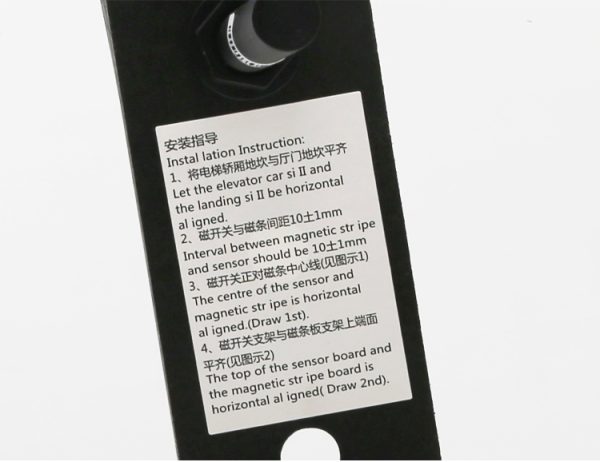

Installation Instruction:
Let the elevator car si Ⅱ and the landing si Ⅱ be horizontal aligned
Interval between magnetic stripe and sensor should be 10±1mm
The centre of the sensor and magnetic stripe is horizontal aligned(Draw 1st)
The top of the sensor board and magnetic stripe board is horizontal aligned(Draw 2nd)
