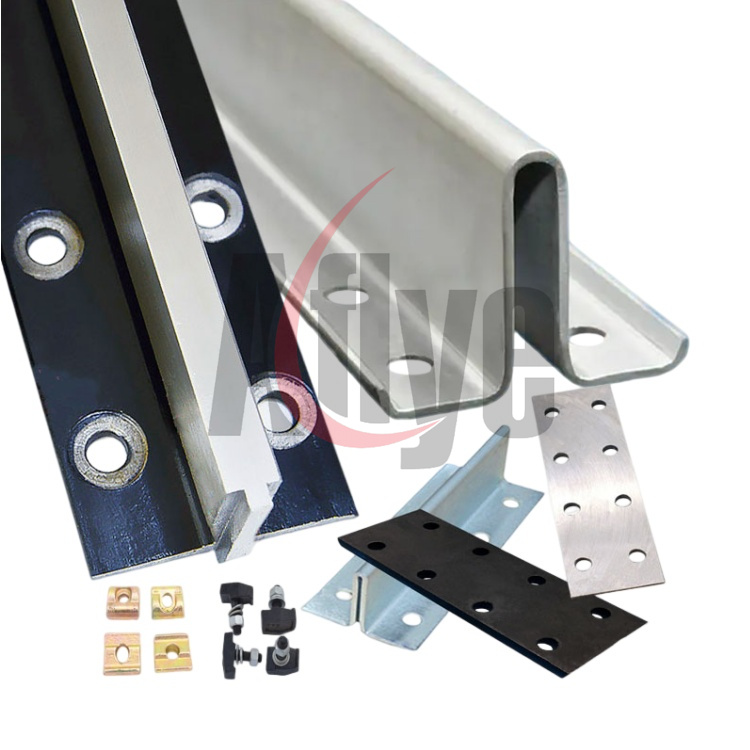

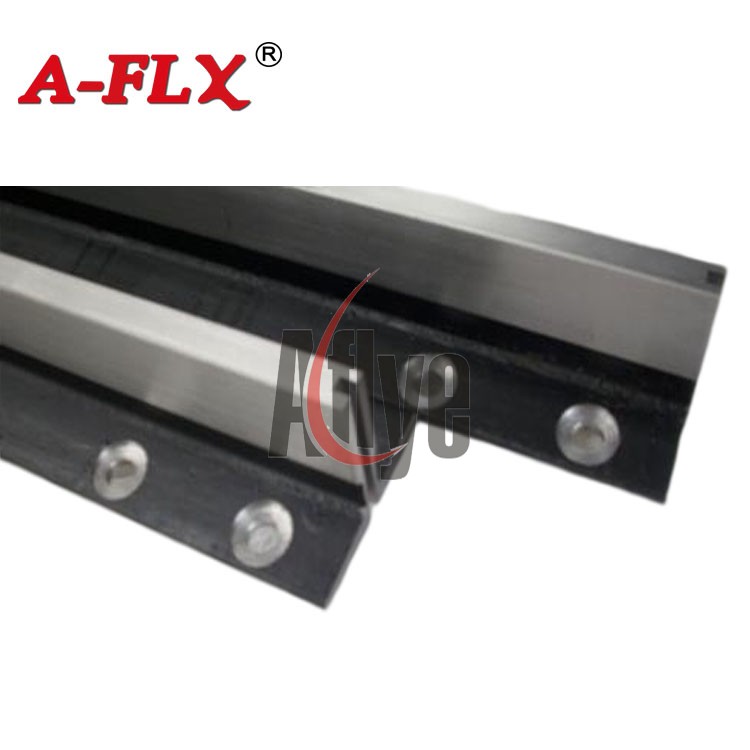

Elevator T/L Type Solid Guide Rail /Hollow Guide Rail
T45 T50 T70 T75 T78 T82 T89 T90 T114 T127 T140
|
Model No
|
Screw
|
Guide Rail Clip
|
Fish Plate
|
Guide Rail Size
|
|
T45/A
|
M8*25
|
8k
|
160*50*8mm
|
45mm*45mm*5mm
|
|
T50/A
|
M8*25
|
8k
|
200*50*8mm
|
50mm*50mm*5mm
|
|
T70-1/B
|
M12*35
|
8k
|
250*70*10mm
|
70mm*65mm*9mm
|
|
T75-3/B
|
M12*35
|
8k
|
240*75*10mm
|
75mm*62mm*10mm
|
|
T78/B
|
M12*35
|
8k
|
240*75*10mm
|
78mm*56mm*10mm
|
|
T82/B
|
M12*35
|
13k
|
216*80*10mm
|
82.5mm*68.25mm*9mm
|
|
T89/B
|
M12*40
|
13k
|
305*90*13mm
|
89mm*62mm*16mm
|
|
T90/B
|
M12*40
|
13k
|
305*90*13mm
|
90mm*75mm*16mm
|
|
T114/B
|
M16*50
|
18k
|
305*120*18mm
|
114mm*89mm*16mm
|
|
T127-2/B
|
M16*55
|
24k
|
305*130*18mm
|
127mm*89mm*16mm
|
|
Our company specializes in producing various of elevator guide rails, connecting fish plates, guide rail clips.etc. All models of elevator guide rails have been tested and meet industry standards!
The main product models of our company are as follows: Cold drawn T-shaped guide rail: Such as T45/A, T50/A, T70/A. Machined T-shaped guide rails: T70-1/B, T75-3/B, T78/B, T82/B, T89/B, T90/B, T114/B, T127-2/B, T127-1/B Hollow guide rail: TK5, TK5A, TK3. Other non-standard dimensions can be determined based on the provided drawings. Welcome to contact us. |
||||
