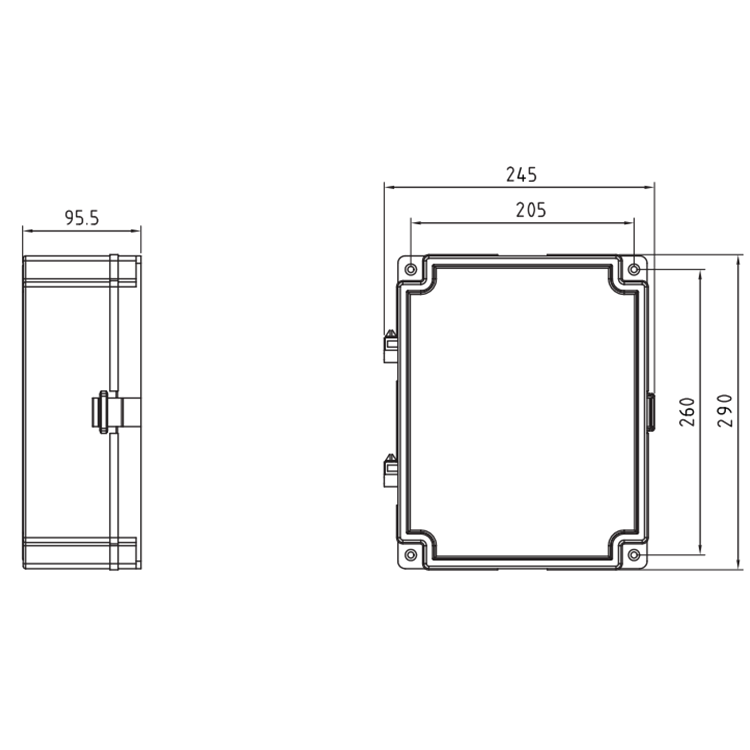

| Size | 290*245*104mm | The main circuit breaker TGB1N - 63 series standard: GB/T10963.1、IEC60898-1 Rated short circuit breaking capacity:6kA Electrical Life:10000 Mechanical Life:20000 Ambient Temperature:-35~+70℃ Conform toCCC、CE、RoHS |
| Shell Material | Flame Retardant ABS | |
| Installation Method | Screw Fixation | |
| Installation Range | used in machine room | |
| Rated Working Voltage | AC380V | |
| Rated Insulation Voltage | AC660V 50Hz | |
| Protection Grade | IP30 | |
| Rated Current Level | 32A-125A | |
| Rated Short Circuit Resistance Strength | 3kA |
