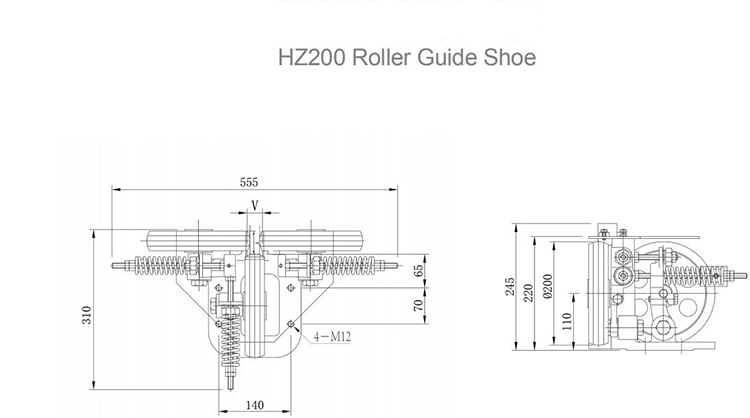

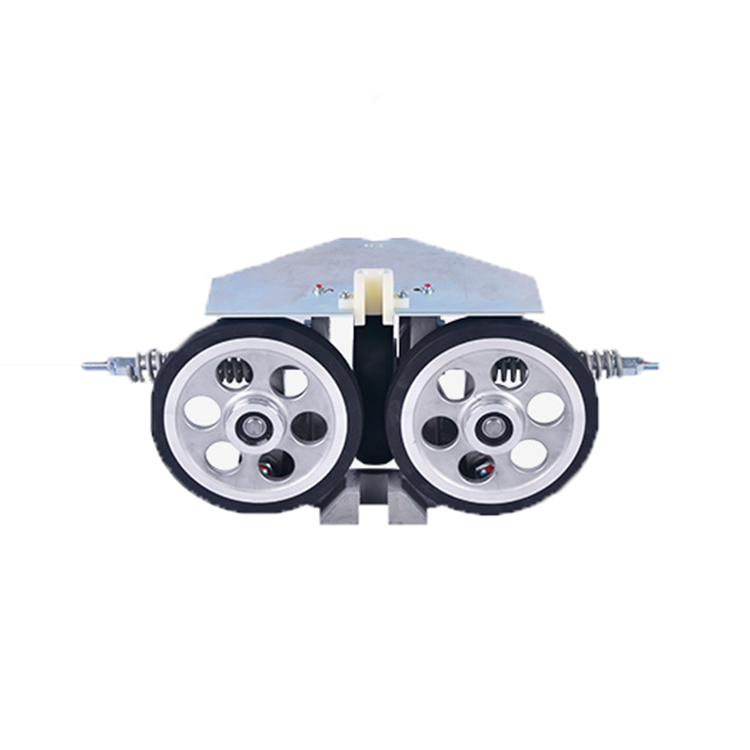

AF-HZ200 Elevator Roller Guide Shoe D200mm
| Item | Style | Roller Dia. | RatedSpeed | Rail Width | Rated Load | A | Car Rated Load | ||
| CAR | CWT | K | Normal | Barking | |||||
| AF-HZ200-G16S | Elastic | 200mm | 5.0m/s | 10.0m/s | 16mm | 450N | 3000N | 27mm | 2000KG |
| AF-HZ200-G16L | Elastic | 200mm | 5.0m/s | 10.0m/s | 16mm | 450N | 3000N | 27mm | 2000KG |
| AF-HZ200-G19 | Elastic | 200mm | 5.0m/s | 10.0m/s | 19mm | 450N | 3000N | 30mm | 2000KG |
| AF-HZ200-G19 | Elastic | 200mm | 5.0m/s | 10.0m/s | 28.6mm | 450N | 3000N | 39mm | 2000KG |
| AF-HZ200-G32 | Elastic | 200mm | 5.0m/s | 10.0m/s | 31.75mm | 450N | 3000N | 42mm | 2000KG |
