| Product Name | Elevator Progressive Safety Gear Lift Safety System |
| Type | Elevator Spare Parts |
| AF-ID NO. | AF-OX-188B |
| Model NO. | AF-OX-188B |
| Delivery Time | 4-6 Working day |
| Delivery | DHL,TNT,FedEx,Air,Sea |
| Payment | T/T,Western Union,Paypal |
Hot Product
Main Product
| Parameter | AF-OX-188B |
| Rated speed | ≤2.5/s |
| Permissible mass | 6550kg |
| Applicable width of guide rail surface | 16mm Guide rail width |
| Pulling form | double pulling (standard M10、optional M8) |

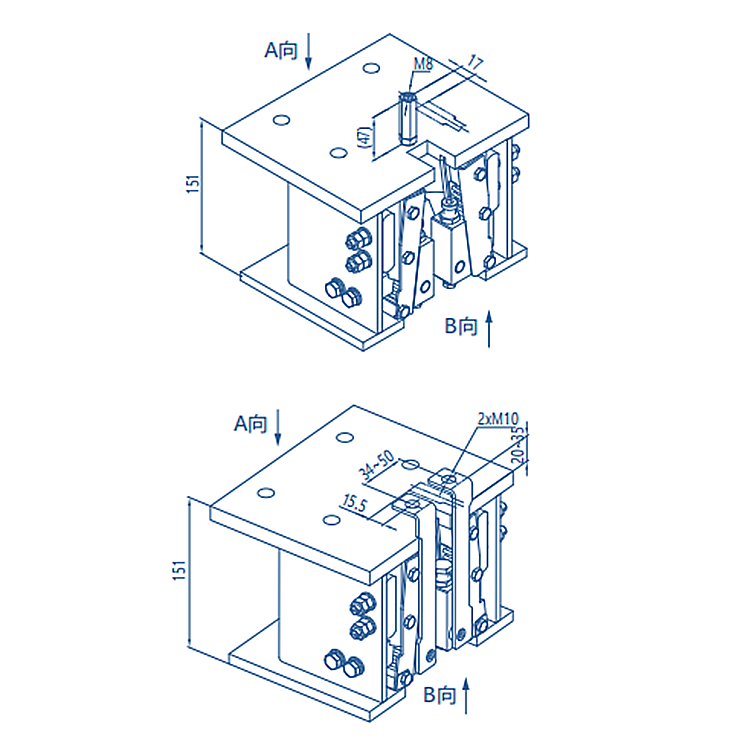

| Type | A value | B value | C value | B1 value | B2 value | H value | Match the guide shoe |
| A01 | 205 | 170 | 110 | 47 | 70 | M16 | OX-029(A01) |
| A02 | 260 | 170 | 220 | 47 | 70 | M16 | OX-029(A01) |
| Integrated | 200 | 200 | 110 | 70 | 70 | M16 | OX-029(A01) |
