13VTR Elevator Geared Traction Machine
13VTR elevator traction machine is composed of an electric motor, brake, reduction gearbox. It is a driving device that uses the friction between the traction machine and steel wire rope to achieve the up and down movement of the elevator car
Suitable for various types of variable frequency speed elevator (load capacity 600-1150kg & speed of 1-1.75m/s,)
Speed：1.0M/S~1.75M/S
Load: 600KG~1150KG
Traction Wheel：575MM、620MM、640MM、700MM
Rotation speed：1100~1460R/P
Power: 8.5KW~15KW
Motor: TAA422F5, TAA422G5, TBA422H1, TBA422H2
Brake: DC125V
| Elevator Specs | Reducer | Brake Voltage | Motor | ||||||
| Roping | Load(kg) | Speed(m/s) | Traction Sheave(mm) | Gear Ratio | Model No. | Power | Speed (r/min) | Per Hour | |
| 1:1 2:1 |
600-1150 | 1-1.75 | 700mm | 13:2 | DC125V | TAA422F5 | 11kw | 1100-1460 | 180/240 |
| 640mm | 3:1 | TAA422G5 | 14kw | ||||||
| 620mm | 22:1 | TAA422H1 | 8.5kw | ||||||
| 575mm | 38:1 | TAA422H2 | 15kw | ||||||

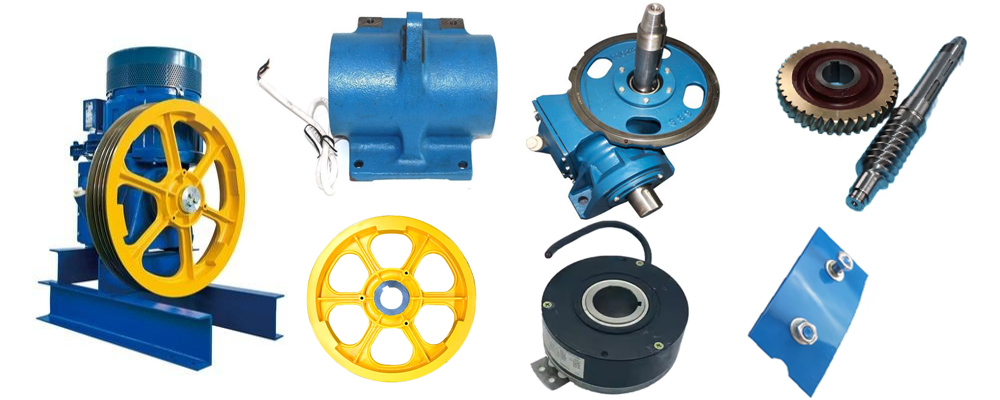

| Photo | AF-ID | Modle No. | Name |
 |
AF-OT80232D | 13VTR | traction machine |
 |
AF-OT80043 | 13VTR | Gearbox |
 |
AF-OT80062 | DAA330E1/DAA330E2/TAB330AJ2 | elevator brake |
 |
AF-OT80139 | 13VTR | elevtaor traction sheave |
 |

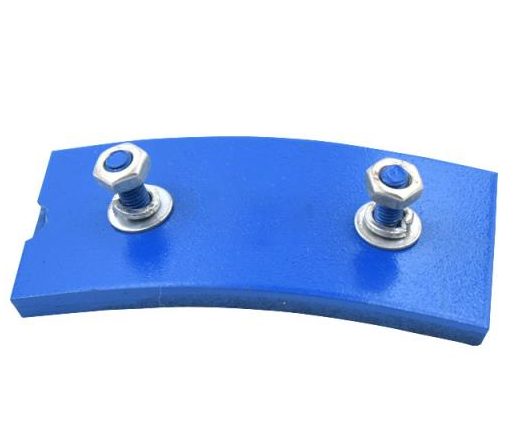

AF-OT80659A | 13VTR / TOC5048B1 | elevator brake pad |
 |

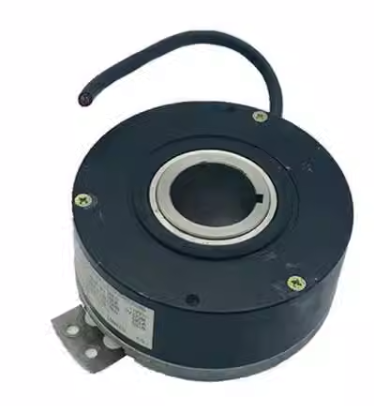

EEC00149 | SBH-1024-2T | 13VTR elevator encoder |
