CAT5E Elevator Traveling Cable TVVBPG-TV TVVBSG TVBG

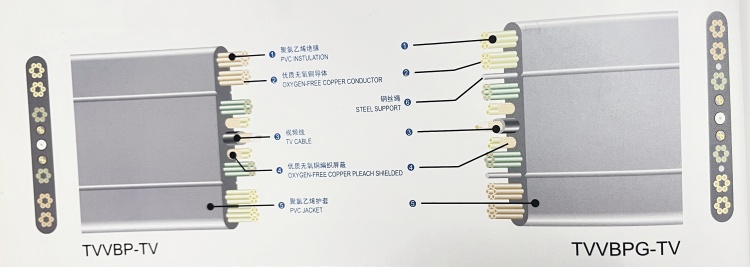

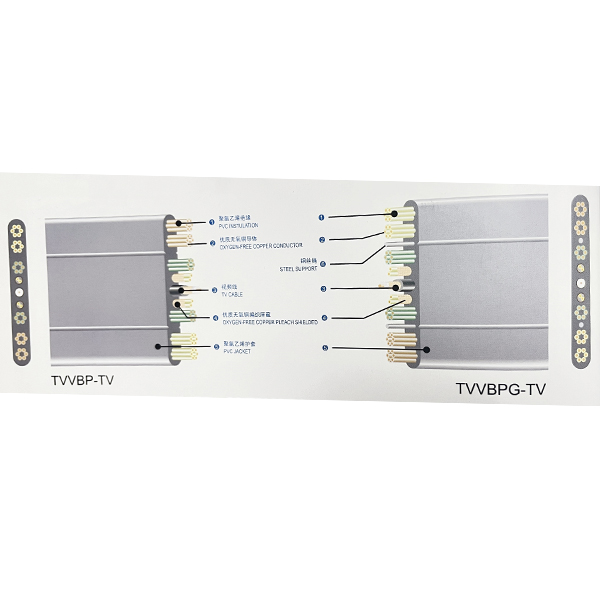

| TVVBP-TV 300/500V | ||||
| specification | conductor structure | overall dimension (mmxmm) |
Ω/km max conductor resistance at 20℃ |
MΩ.km max insulation resistance at 70℃ |
| 36x0.75+2x2Px0.75+0.75-5 | 30/0.18 | 65.0±1x9.2±0.2 | 26 | 0.011 |
| TVVBPG-TV 300/500V | ||||
| specification | conductor structure | overall dimension (mmxmm) |
Ω/km max conductor resistance at 20℃ |
MΩ.km max insulation resistance at 70℃ |
| 36x0.75+2x2Px0.75+0.75-5 | 30/0.18 | 72.0±1x9.2±0.2 | 26 | 0.011 |
| 48x1+2x2Px1+75-5 | 32/0.20 | 100±1x10.6±0.2 | 19.5 | 0.01 |
| TVVBSG 24 x 0.75 + 7 x 0.5 + 2 x 0.75 + 2 x 2 x 0.5 + 2 x 1+ 1 x 1.5 + CAT5E | |
| specification | overall dimension (mmxmm) |

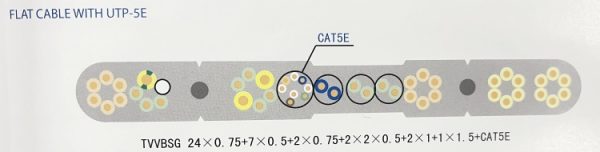

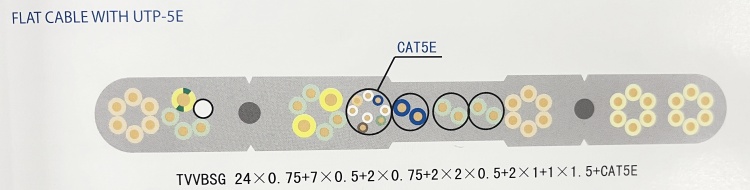

| TVVBSG 24 x 0.75 + 7 x 0.5 + 2 x 0.75 + 2 x 2 x 0.5 + 2 x 1+ 1 x 1.5 + CAT5E | 70.9±1x8.8±0.2 |
| TVVBP-TV 2 x 2P x0.75 +0.75-5+ CAT5E | 40.3±1x8.6±0.2 |
| TVVBP-TV 24 x 0.75 + 4 x2Px0.75+3x2.5+75-5+ + CAT5E | 74.4±1x10.8±0.2 |
| TVVBPG-TV (2x1)P+2x(4x0.75)+75-5+ CAT5E | 70.9±1x8.8±0.2 |

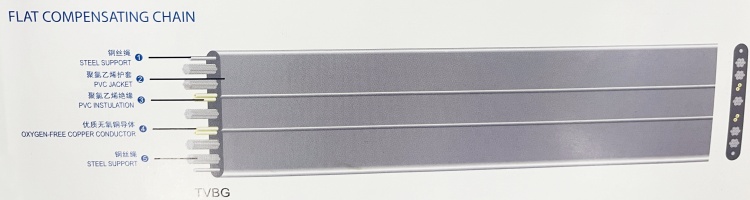

| TVBG | |
| specification | |
| TVBG 2x2x1+6x∅8 | TVBG 2x2x1+5x∅9+2x∅3 |
| TVBG 2x2x1+6x∅10 | TVBG 2x2x1+8x∅8 |
| TVBG 2x2x1+4x∅8 | TVBG 2x2x1+7x∅9 |
