SWE Escalator Rubber Handrail Belt

Type/Size/Code		Mouth width(d)	Inner width(D)	Total width(D1)	Inner High(h)	Top Thickness(h1)	Total High(H)
AF-SC	SWE	33+3-1	62±1	82±1	12±0.8	12±1	34±1
	SDS	39+3-1	62±1	80±1	10.6±0.8	9.5+1	28.5±1
	XF	35+2-1	64±1	82±1	14±0.8	12±1	35±1
AF-OT	OT	38+2-1	64±1	82±1	16.5±0.8	9.5±1	35.5±1
AF-OT	OT-800	39+2-1	60±1	76±1	9.5±0.8	10±1	28±1
AF-MI	J	41+2-1	62±1	80±1	10±0.8	9.2±1	27±1
AF-HI	GRF	41+2-1	63±1	80±1	10.6±0.8	10±1	27.5±1
AF-HI	GRF-1	40+2-1	63±1	82±1	11.5±0.8	10.4±1	31.7±1
AF-HD	W-BT2	40+1-0.5	64±0.5	80±0.5	12±0.5	10+1-0.5	30±0.5
AF-HD	W-BT3	39.6+2-1	63.5±1	79.3±1	10.6±0.8	10.4±1	28.4±1
AF-LG	LG	39.5+2-1	63.5±1	82±1	12.5±0.8	12±1	33±1
	LG-1	42+2-1	64.5±1	82±1	16.5±0.8	12±1	36±1
	LG-2	36+2-1	62±2	86±1	12	12±1	32±1
AF-FT	STD	40+2-1	62-2-0	80+0-1	10+1.5	10+0-1	28.5+0-1
AF-TH	FT-300	40+3-1	68_2	88+4-2	15±1	12	35±1
AF-KO	ECO-3000	37.5+2.5	62.8+1.5	79.2+2.5	10.6±0.5	9.5+1-0.5	28.2+1.5-1
	HD560359	42±1.5	68±1	88±1.5	15±1	10±1	35±1
	HD967826	42±1.5	68±1	88±1.5	15±1	10±1	35±1
	PTK2146675	37.5-1.5	62.8+1.5	79.2+2.5	10.6±0.5	9.5+1-0.5	28.15+1.5-1

Product Name	Escalator Handrail Belt
Type	Elevator Spare Parts
AF-ID NO.	AF-H002

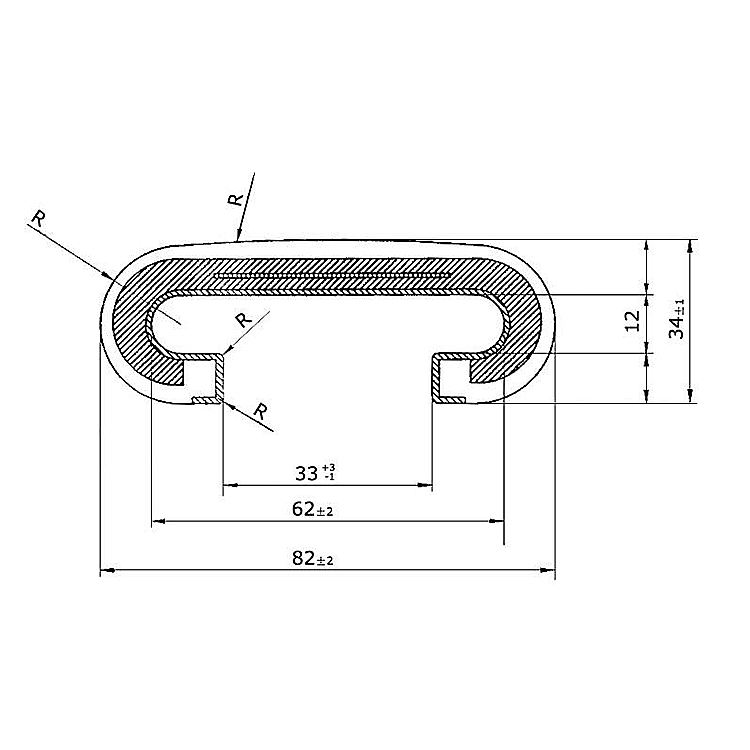

Size	H34±1 h12 D1:82±2 D62±2 d33mm
Delivery Time	7-10 Working day
Delivery	DHL,TNT,FedEx,Air,Sea
Payment	T/T,Western Union,Paypal
