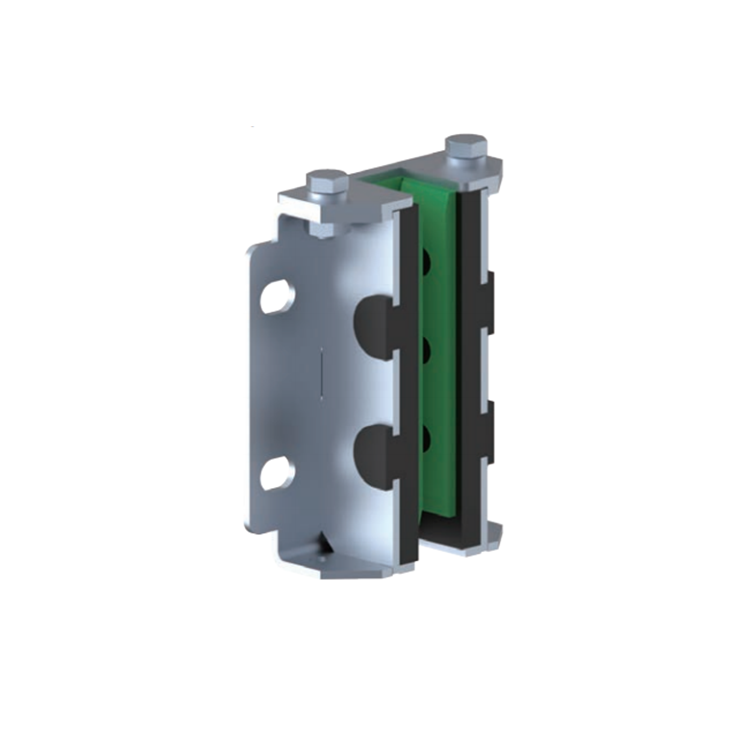

AF-SG16S Elevator Car Counterweight Sliding Guide Shoe For 9/10/16 mm Guide Rail

Product Name Elevator Sliding Guide Shoe
Type Elevator Spare Parts
AF-ID NO. AF-SG16S
Model NO. SG16S
Delivery Time 3~5Working days
Delivery DHL,TNT,FedEx,Air,Sea
Payment T/T,Western Union,Paypal

Hot Product

Main Product

AF-SG16S Elevator Car Counterweight Sliding Guide Shoe For 9/10/16 mm Guide Rail

Type Rated Speed Rated Load
(Reference)
Width Of Guide Rail Max. Force During Running Max. Force During Loading Lubricants
CWT
[m/s]
CAR
[m/s]
K[mm] Side Pressure
Fx[N]
Normal Pressure
Fy[N]
Side Pressure
Fx[N]
Normal Pressure
Fy[N]
AF-SG16S 2.5 / / 9/10/16 850 600 1200 1200 ×

AF-SG16S Elevator Car Counterweight Sliding Guide Shoe For 9/10/16 mm Guide Rail
