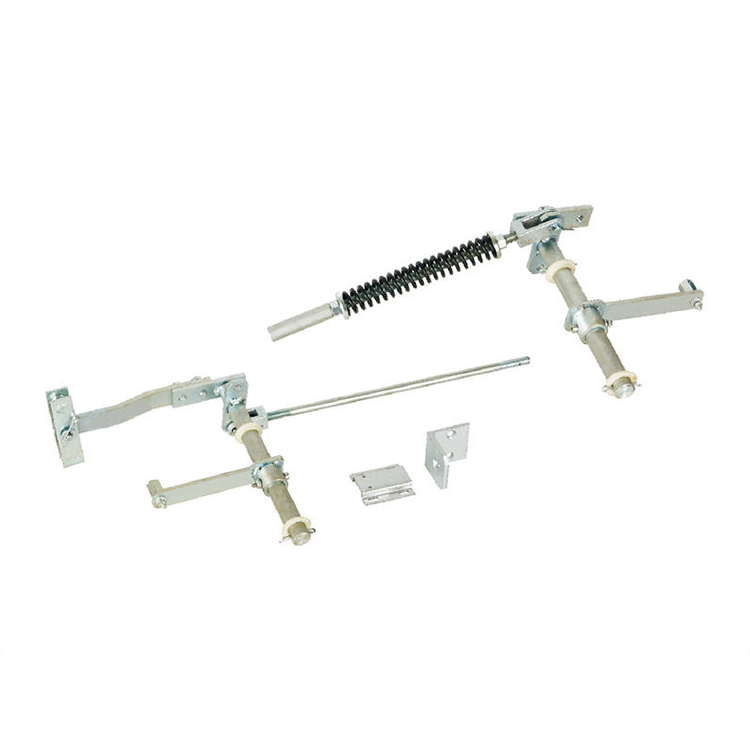

| Product Name | Elevator Safety Linkage Device |
| Type | Elevator Spare Parts |
| AF-ID NO. | AF-OX-188BT |
| Model NO. | AF-OX-188BT |
| Delivery Time | 4-6 Working day |
| Delivery | DHL,TNT,FedEx,Air,Sea |
| Payment | T/T,Western Union,Paypal |
Hot Product
Main Product
| Parameter | AF-OX-188BT |
| Installation mode | Installation of lower beam |
| Pulling form | Single pulling |
| Matching safety gear | Single pulling pull rod |
| Pre-tighten lifting force | 150～200N |
| Instruction | Excluding pulling bar switch |

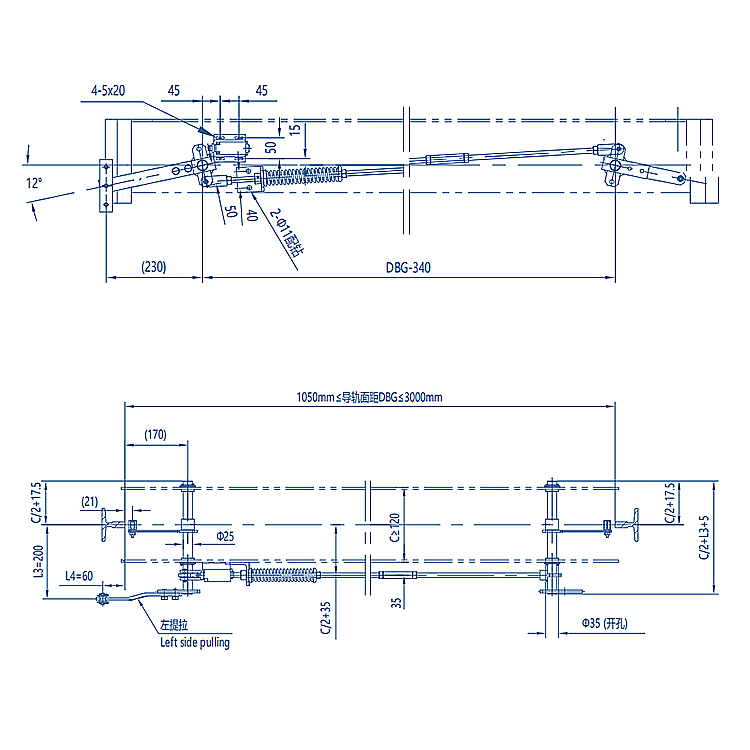

| TYPE | Overspeed Governor related dimensions | Order related information | Remark | |||
| AF-OX-188BT | L3 | L4 | C | DBG (Top surface distance of guide rail) | Tyra position | Bill of materials (or technical consultation) |
| 200 | 60 | 160(≥120) | 1050～3000 | Left / right | ||
