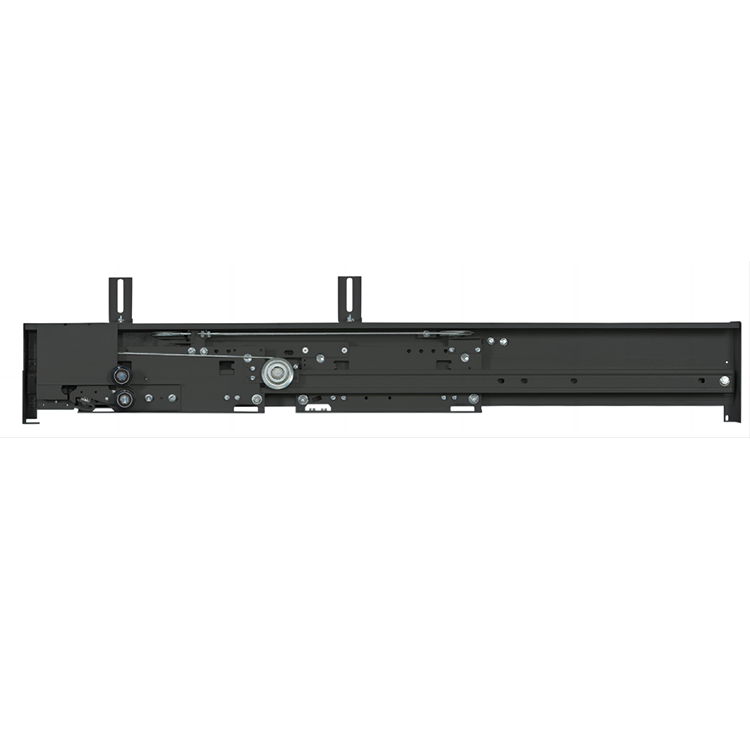

AF-OCM502A Elevator 2-Leafs Side Opening Landing Door Device Weight Inner-Placed

Product Name	Elevator Door Operator
Type	Elevator Spare Parts
AF-ID NO.	AF-OCM502A
Model NO.	AF-OCM502A
Delivery Time	4~7 Working days
Delivery	DHL,TNT,FedEx,Air,Sea
Payment	T/T,Western Union,Paypal

Categories: Elevator Modernization, Modernized Door Operator Tags AF-OCM502A Elevator 2-Leafs Side Opening Landing Door Device Weight Inner-Placed, Elevator Automatic Door Operator, Elevator Cabin Door Opening System, elevator center opening car door operator, Elevator door center operation, elevator door mechanism, Elevator Door System, elevator parts manufacturer, elevator parts supplier, elevator parts wholesale, elevator side opening car door operator

Hot Product

Main Product

Escalator Travelator Moving Walkway Handrail Belt

Add To Quote

The product is already in your quotation request list.

View List
WECO-917E71-AC110V Elevator Light Curtain Door Sensor

Add To Quote

The product is already in your quotation request list.

View List
KDL16L-12A/14A/18A Elevator Drive Inverter KM953503G21 KM953503R121

Add To Quote

The product is already in your quotation request list.

View List
FB-9K KM50041606 Elevator Cross Flow Fan Blower 220V

Add To Quote

The product is already in your quotation request list.

View List

Description

1. Closing by weight type, weight and guiding pipe fixed at two sides of landing panels / or door-closing side

2. Unlocking hole on landing panel, passed 45kg pendulum impact test

3. Door lock qualified by the NATIONAL ELEVATOR INSPECTION CENTER, with CE、CU-TR certificate

4. Voltage for door lock: ≤ AC230V、≤ DC110V

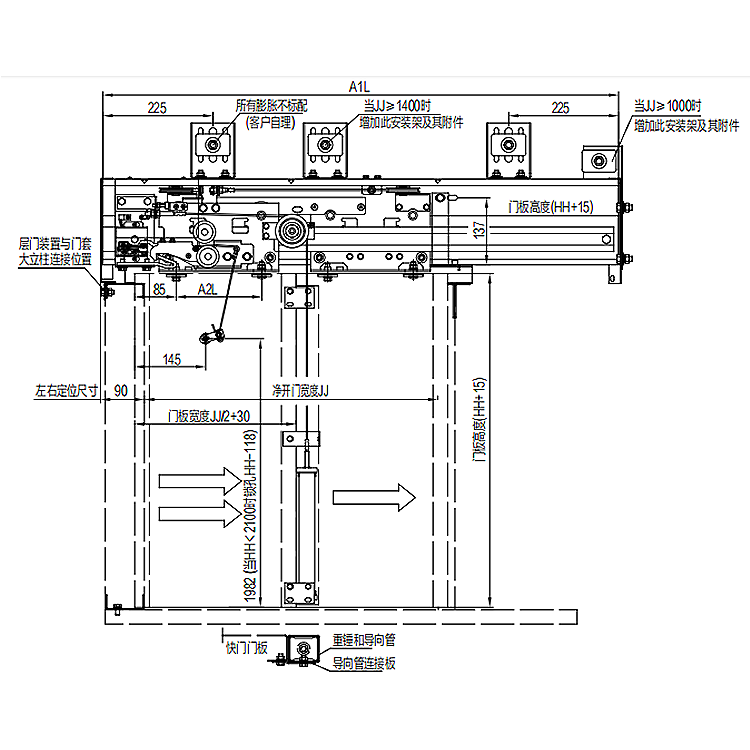

JJ	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700	1750	1800	1850	1900	1950	2000
A1L=1.5JJ+155	1055	1130	1205	1280	1355	1430	1505	1580	1650	1730	1805	1880	1955	2030	2105	2180	2255	2330	2405	2480	2555	2630	2705	2780	2855	2930	3005	3080	3155
A2L=JJ/2-125	175	200	225	250	275	300	325	350	375	400	425	450	475	500	525	550	575	600	625	650	675	700	725	750	775	800	825	850	825
仅 502A 时 HH 范围	HH ≥ 1900												HH ≥ 2000							HH ≥ 2100		HH ≥ 2200			HH ≥ 2300	HH ≥ 2400	HH ≥ 2500		HH ≥ 2250
