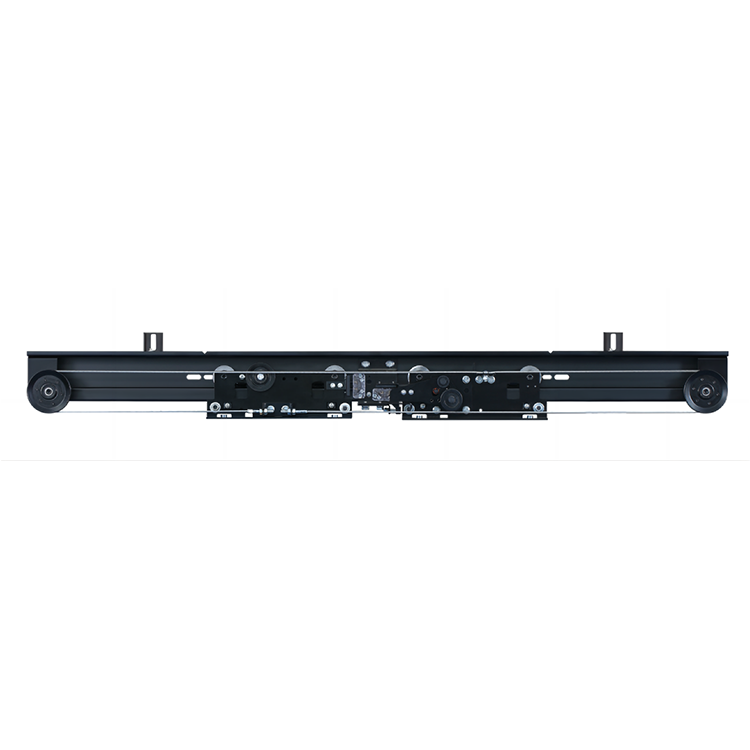

AF-OCM103-A Elevator 2-Leafs Center Opening Landing Door Device Common Weight Type

Product Name	Elevator Door Operator
Type	Elevator Spare Parts
AF-ID NO.	AF-OCM103-A
Model NO.	AF-OCM103-A
Delivery Time	4~7 Working days
Delivery	DHL,TNT,FedEx,Air,Sea
Payment	T/T,Western Union,Paypal

Categories: Elevator Modernization, Modernized Door Operator Tags AF-OCM103-A Elevator 2-Leafs Center Opening Landing Door Device Common Weight Type, Elevator Automatic Door Operator, Elevator Cabin Door Opening System, elevator center opening car door operator, Elevator door center operation, elevator door mechanism, elevator door motor control, Elevator Door System, elevator parts manufacturer, elevator parts supplier, elevator parts wholesale, Elevator two Panels Center Opening Door Operator

Hot Product

Main Product

Escalator Travelator Moving Walkway Handrail Belt

Add To Quote

The product is already in your quotation request list.

View List
WECO-917E71-AC110V Elevator Light Curtain Door Sensor

Add To Quote

The product is already in your quotation request list.

View List
KDL16L-12A/14A/18A Elevator Drive Inverter KM953503G21 KM953503R121

Add To Quote

The product is already in your quotation request list.

View List
FB-9K KM50041606 Elevator Cross Flow Fan Blower 220V

Add To Quote

The product is already in your quotation request list.

View List

Description

1. Unlocking hole on landing panel, passed 45kg pendulum impact test

2. Closing by weight type, weight and guiding pipe fixed at inner side of landing panel

3. Door lock qualified by the NATIONAL ELEVATOR INSPECTION CENTER, Level of protection is IP2X

4. Voltage for door lock: ≤ AC230V、≤ DC110V

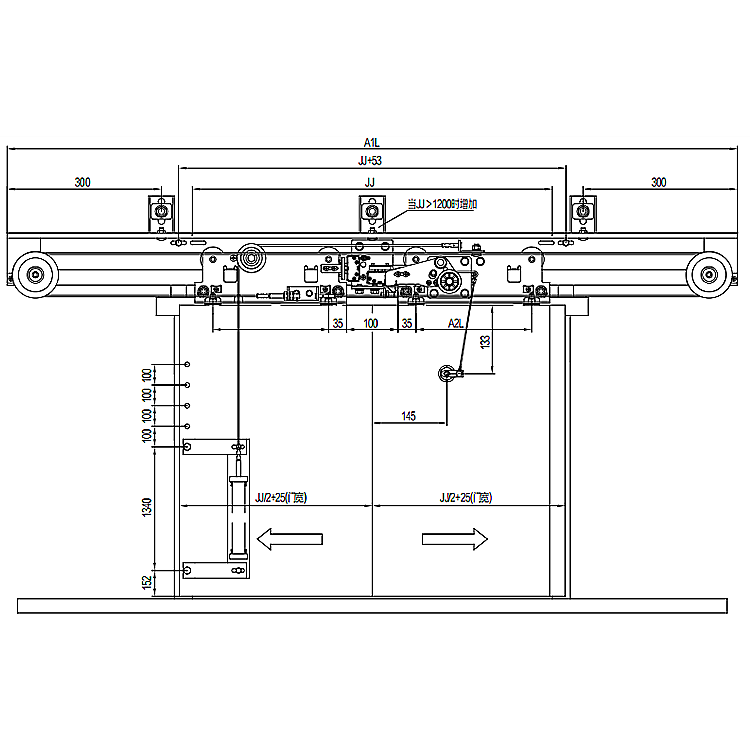

JJ	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400
AlL	1220	1320	1420	1520	1620	1720	1820	1920	2020	2120	2220	2320	2420	2520	2620	2720	2820
A2L	175	200	225	250	275	300	325	350	375	400	425	450	475	500	525	550	575
