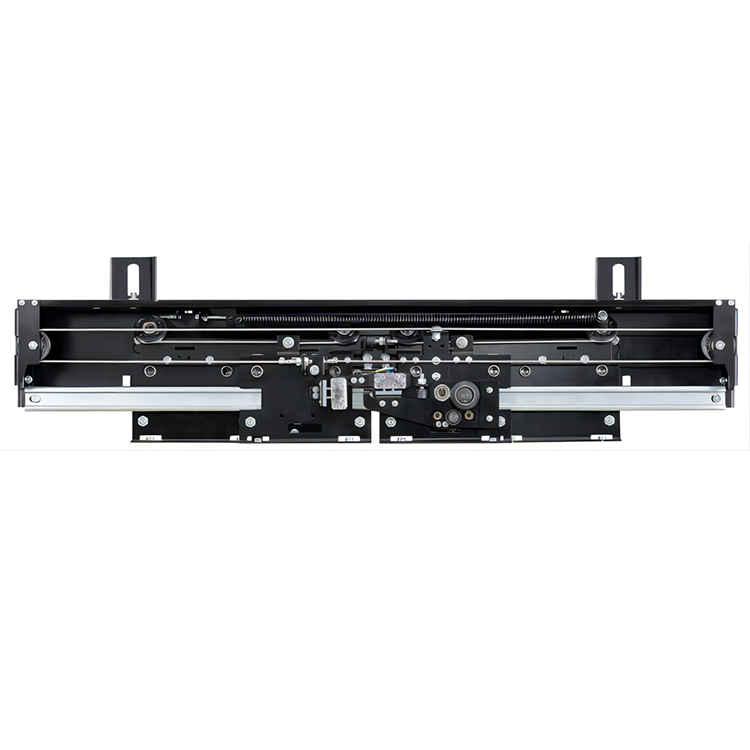

1. Closing by spring type, spring assembled on inner top of landing device

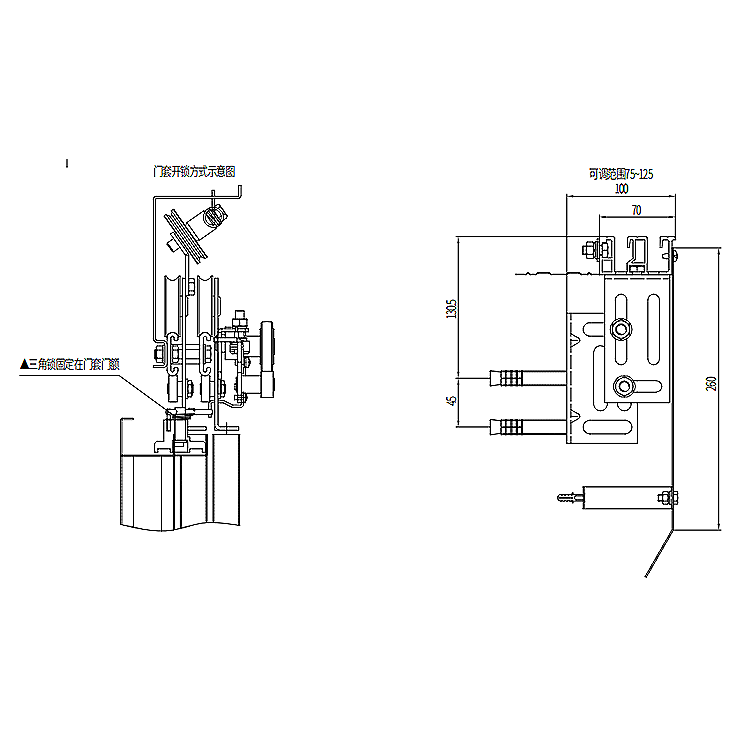

2. Unlocking hole on door jamb, sill width is 70mm, especially for home lifts
3. Door lock qualified by the NATIONAL ELEVATOR INSPECTION CENTER, level of protection is IP2X
4. Voltage for door lock: ≤ AC230V、≤ DC110V

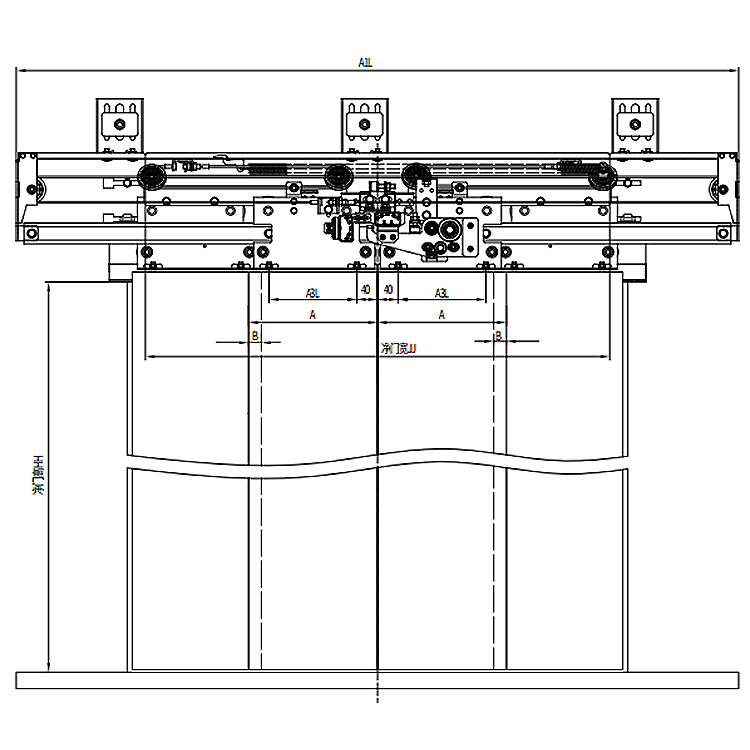

| JJ | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1050 | 1100 | 1150 | 1200 |
| AlL | 1050 | 1100 | 1150 | 1200 | 1250 | 1325 | 1400 | 1475 | 1550 | 1625 | 1700 | 1775 | 1850 |
| A3L | 145 | 145 | 145 | 145 | 145 | 157.5 | 170 | 182.5 | 195 | 207.5 | 220 | 232.5 | 245 |
| A | 225 | 225 | 225 | 225 | 225 | 237.5 | 250 | 262.5 | 275 | 287.5 | 300 | 312.5 | 325 |
| B | 75 | 625 | 50 | 37.5 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
