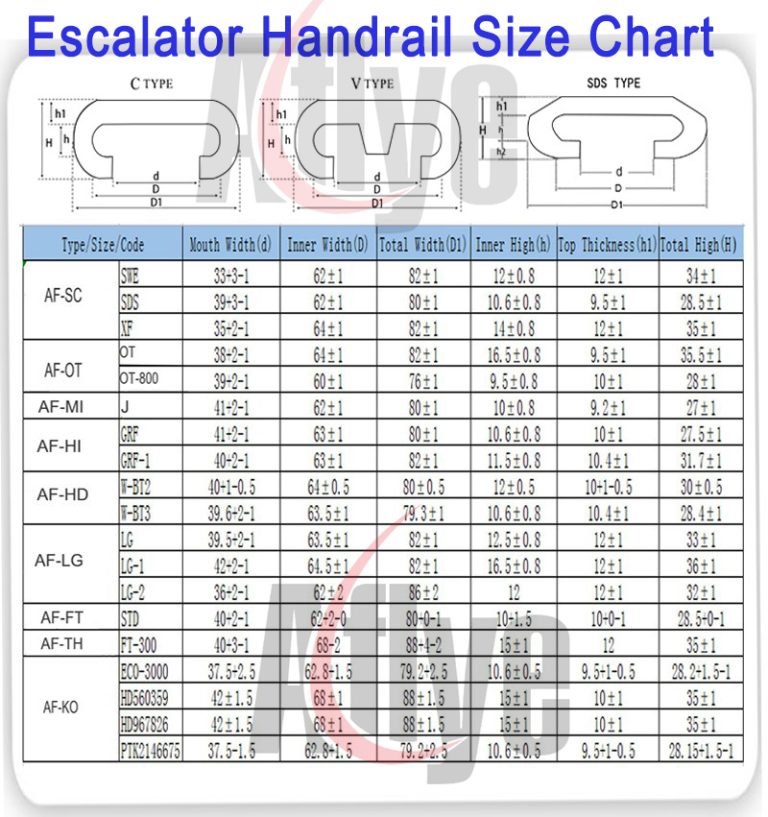

WBT Escalator Rubber Handrail Belt
Type/Size/Code |
Mouth width(d) |
Inner width(D) |
Total width(D1) |
Inner High(h) |
Top Thickness(h1) |
Total High(H) |
|
| AF-SC | SWE | 33+3-1 | 62±1 | 82±1 | 12±0.8 | 12±1 | 34±1 |
| SDS | 39+3-1 | 62±1 | 80±1 | 10.6±0.8 | 9.5+1 | 28.5±1 | |
| XF | 35+2-1 | 64±1 | 82±1 | 14±0.8 | 12±1 | 35±1 | |
| AF-OT | OT | 38+2-1 | 64±1 | 82±1 | 16.5±0.8 | 9.5±1 | 35.5±1 |
| OT-800 | 39+2-1 | 60±1 | 76±1 | 9.5±0.8 | 10±1 | 28±1 | |
| AF-MI | J | 41+2-1 | 62±1 | 80±1 | 10±0.8 | 9.2±1 | 27±1 |
| AF-HI | GRF | 41+2-1 | 63±1 | 80±1 | 10.6±0.8 | 10±1 | 27.5±1 |
| GRF-1 | 40+2-1 | 63±1 | 82±1 | 11.5±0.8 | 10.4±1 | 31.7±1 | |
| AF-HD | WBT2 | 40+1-0.5 | 64±0.5 | 80±0.5 | 12±0.5 | 10+1-0.5 | 30±0.5 |
| WBT3 | 39.6+2-1 | 63.5±1 | 79.3±1 | 10.6±0.8 | 10.4±1 | 28.4±1 | |
| AF-LG | LG | 39.5+2-1 | 63.5±1 | 82±1 | 12.5±0.8 | 12±1 | 33±1 |
| LG-1 | 42+2-1 | 64.5±1 | 82±1 | 16.5±0.8 | 12±1 | 36±1 | |
| LG-2 | 36+2-1 | 62±2 | 86±1 | 12 | 12±1 | 32±1 | |
| AF-FT | STD | 40+2-1 | 62-2-0 | 80+0-1 | 10+1.5 | 10+0-1 | 28.5+0-1 |
| AF-TH | FT-300 | 40+3-1 | 68_2 | 88+4-2 | 15±1 | 12 | 35±1 |
| AF-KO | ECO-3000 | 37.5+2.5 | 62.8+1.5 | 79.2+2.5 | 10.6±0.5 | 9.5+1-0.5 | 28.2+1.5-1 |
| HD560359 | 42±1.5 | 68±1 | 88±1.5 | 15±1 | 10±1 | 35±1 | |
| HD967826 | 42±1.5 | 68±1 | 88±1.5 | 15±1 | 10±1 | 35±1 | |
| PTK2146675 | 37.5-1.5 | 62.8+1.5 | 79.2+2.5 | 10.6±0.5 | 9.5+1-0.5 | 28.15+1.5-1 | |
