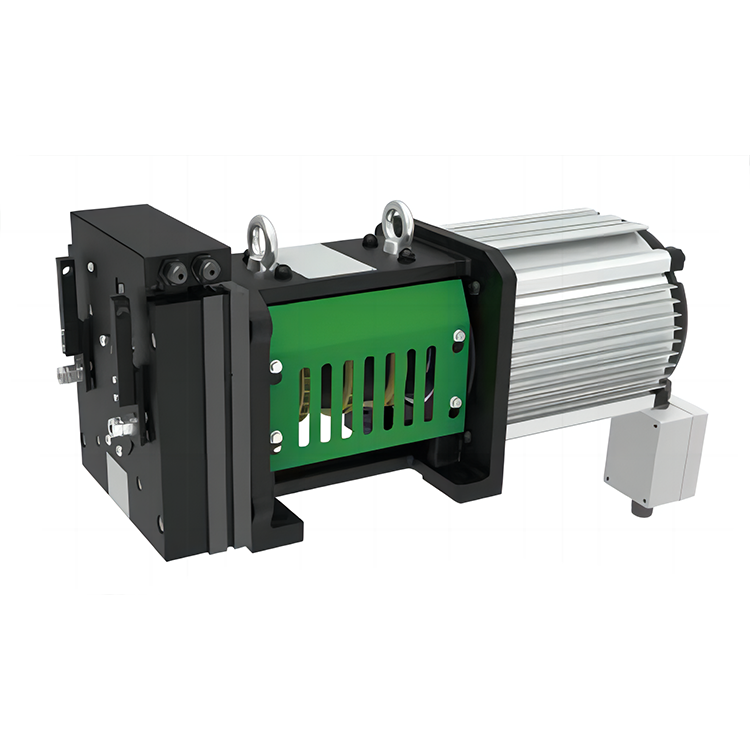

Notes: GDX machine need to work with GUDA grooved belt,Belt Clip, Counter Pulley, Belt Breaking Detect,
Bake Release, Belt Lock.
| GENERAL DATA | Load | Lift speed | Phase Voltage | Sheave dia | Poles | Traction belt qty | Rated power | Rated speed | Rated torque | Frequ ency | Rated Voltage | Rated Current |
| GDX112-544-4-12 | 544kg | 0.4m/s | 1/220V | 86mm | 10P | 2n | 1.5kW | 178r/min | 81N·m | 14.8Hz | 149V | 9.6A |
| GDX112-544-4-34 | 544kg | 0.4m/s | 3/380V | 86mm | 10P | 2n | 1.5kW | 178r/min | 80N·m | 14.8Hz | 299V | 4.8A |
| GDX112-544-6.3-12 | 544kg | 0.63m/s | 1/220V | 86mm | 10P | 2n | 2.3kW | 280r/min | 78N·m | 23.3Hz | 157V | 12.2A |
| GDX112-544-6.3-34 | 544kg | 0.63m/s | 3/380V | 86mm | 10P | 2n | 2.3kW | 280r/min | 78N·m | 23.3Hz | 330V | 5.8A |
| GDX112-544-10-12 | 544kg | 1.0m/s | 1/220V | 86mm | 10P | 2n | 3.6kW | 444r/min | 77N·m | 37.0Hz | 169V | 16.2A |
| GDX112-544-10-34 | 544kg | 1.0m/s | 3/380V | 86mm | 10P | 2n | 3.6kW | 444r/min | 77N·m | 37.0Hz | 325V | 8.4A |
| load | 544kg |
| Voltage | 220 / 380V |
| Suspension | 2:1 |
| Center Height | 112mm |
| Weight | 80kg |
| Max.Static Load | 2000kg |
| Brake | DC110V 2*0.6A |
| Duty | S5 40% |
