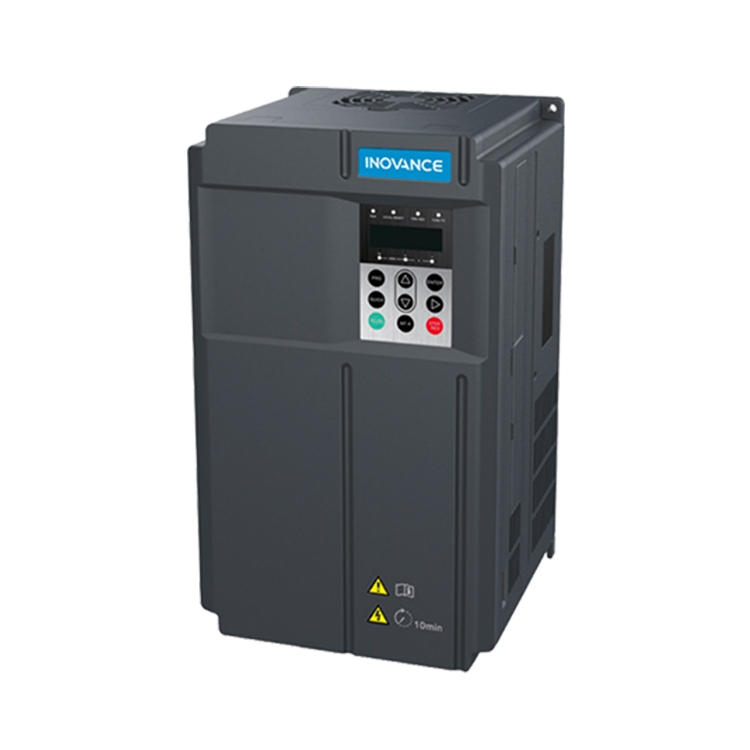

380V~480V MD500L Elevator Used Drive Frequency Inverter For Lift Control System 3.7KW~30KW

380V~480V MD500L Elevator Frequency Inverter 3.7KW~30KW

Product Name	Elevator Inverter
Type	Elevator Spare Parts
Model NO.	MD500L
Delivery Time	4~6Working days
Delivery	DHL,TNT,FedEx,Air,Sea
Payment	T/T,Western Union,Paypal

Categories: Elevator Modernization, Modernized Inverter Tags Ac Drive Frequency Inverter, elevator black inverter, Elevator Integrated Controller Drive Inverter, elevator integrated electrical inverter, Elevator Intergrated Inverter, elevator inverter drive, Elevator Inverter Integrated Drive Controller, elevator lift part manufacturer, elevator lift spare part, elevator parts price list, elevator spare, elevator spare parts, elevator spare parts suppliers, Lifts power frequency inverter, suitable for asynchronous motor control

Hot Product

Main Product

Escalator Travelator Moving Walkway Handrail Belt

Add To Quote

The product is already in your quotation request list.

View List
WECO-917E71-AC110V Elevator Light Curtain Door Sensor

Add To Quote

The product is already in your quotation request list.

View List
KDL16L-12A/14A/18A Elevator Drive Inverter KM953503G21 KM953503R121

Add To Quote

The product is already in your quotation request list.

View List
FB-9K KM50041606 Elevator Cross Flow Fan Blower 220V

Add To Quote

The product is already in your quotation request list.

View List

Description

Item			Specification
MD500L-TXXGBO			3.7	5.5	7.5	11	15	18.5	22	30
	Applicable motor	(kW)	3.7	5.5	7.5	11	15	18.5	22	30
	Applicable motor	(HP)	5	7.5	10	15	20	25	30	40
	Rated output current (A)		9	13	17	25	32	37	45	60
	Output voltage		0 to input voltage
	Maximum output frequency		100 Hz (editable through a parameter)
	Carrier frequency		0.8 to 8.0 kHz (automatically adjusted according to the load characteristics)
	Overload capacity		150% for 60s & 180% for 3s
Input	Rated input current (A)		11.4	16.7	21.9	32.2	41.3	49.5	59	57
	Rated voltage/frequency		AC: Three-phase 380 to 480 V, 50/60 Hz
	Allowed voltage fluctuation		15% to 10%; actual allowed range: 323 to 528 V AC
	Allowed frequency fluctuation		±5%
	Power capacity (kVA)		12	17.5	22.8	33.4	42.8	45	54	52
Thermal design	Thermal power consumption (kW)		0.138	0.201	0.24	0.355	0.454	0.478	0.551	0.694
Thermal design	Air flow (CFM)		20	24	30	40	42	51.9	57.4	118.5
Braking resistor	Recommended power (W)		750	1200	1500	2500	3000	4000	4500	6000
Braking resistor	Recommended resistance (Ω)		>150	>100	>75	>50	>38	>32	>27	>20
