18ATF T-S/E311 Elevator Geared Traction Machine
Load: 1000-2000Kg;
Speed: 1.5-2.5m/s;
Other 18ATF host machine accessories: traction sheave, brakes, brake coils, turbine pairs, bearings, oil seals, brake arms, brake pads, encoders, etc
| Elevator Spc | Load | 1000-1600/kg | 1000-2000/kg | ||
| Speed | 1.5/1.75m/s | 2/2.5/s | 1.5/1.75m/s | ||
| Roping | 2:01 | ||||
| Reducer | ModelNo. | 18ATF | |||
| gear Ratio | 17:1 | 9:1 | 29:1 | 17:1 | |
| Traction Sheave | Pitch Circle | 750mm | |||
| Groove Angle | 105°、96° | ||||
| Rope Groove Diameter | 13mm | ||||
| Rope Number | 2004/5/6 | ||||
| Brake | Voltage | 110-125 | |||
| Motor | Power | 26kw | 20/27kw | 18.5kw | 26kw |
| Voltage | 320V | 380V | 320V | 320V | |
| Rotary Speed(r/min) | 1298/1515 | 917/1146 | 1477 | 1298/1515 | |
| Fre | 51Hz | 31/39 | 50 | 51 | |
| Photo | AF-ID | Model No. | Name |
 |

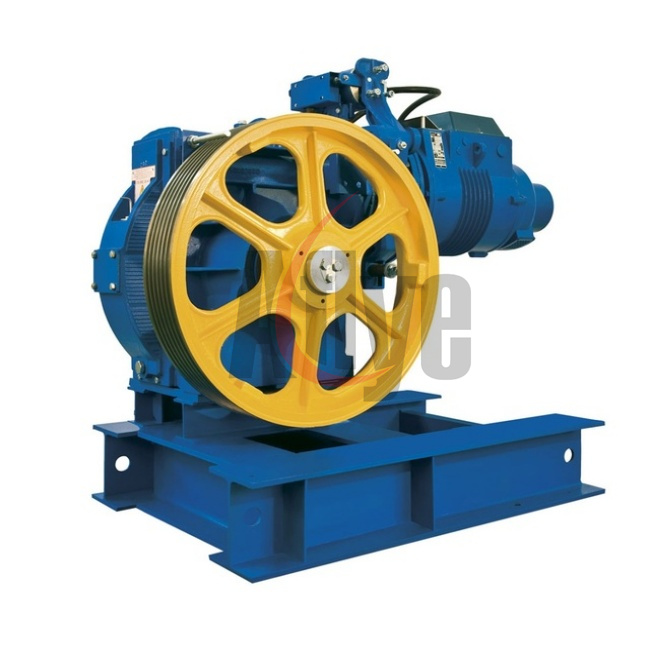

AF-OT80232E | 18ATF | traction machine |
 |
AF-OT80530 | M752123GS65 | Rubber Coupling |
 |
AF-OT80963 | TAB260B15 | traction sheave
diameter D745mm,4 groove,rope width 13mm |
 |

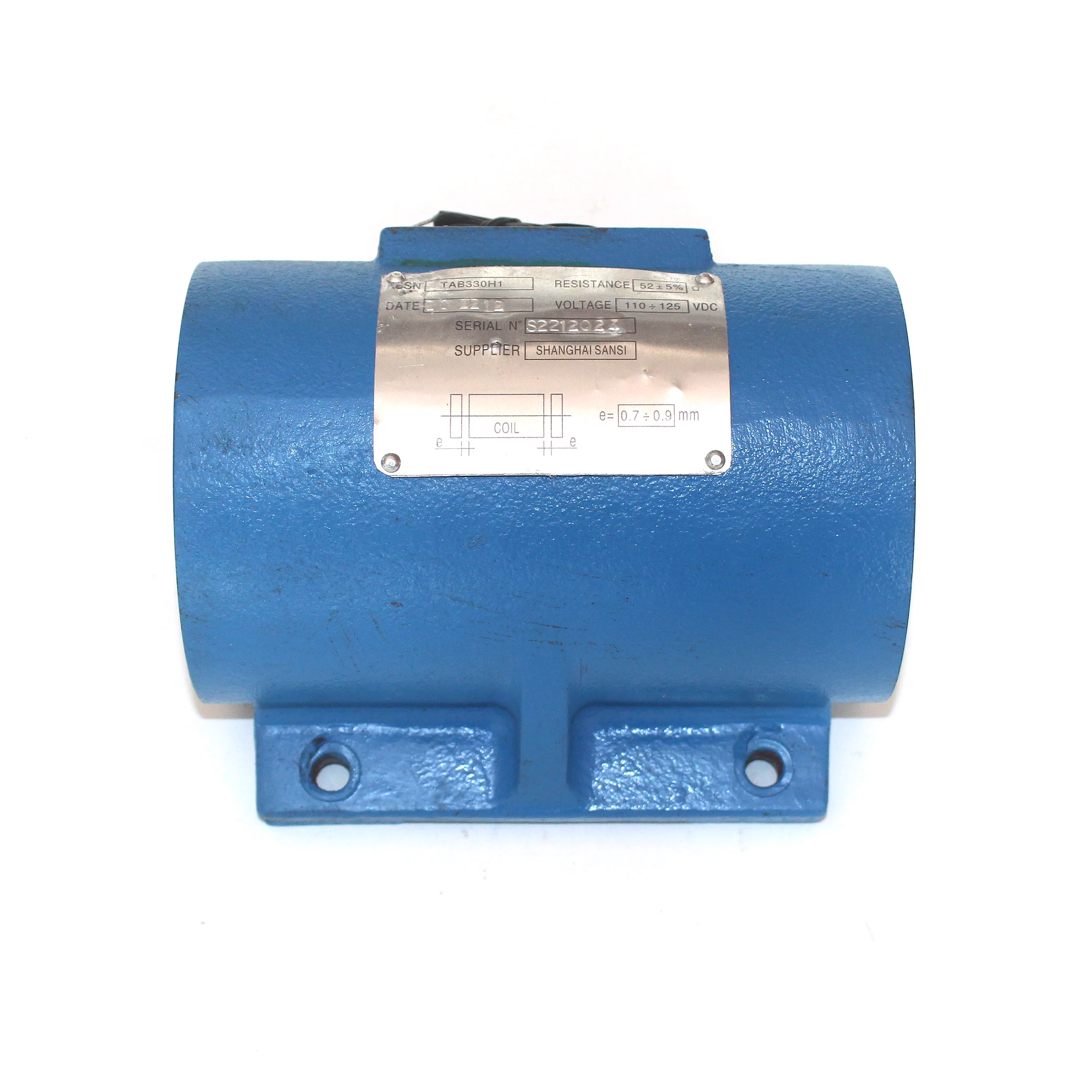

AF-OT81080 | TAB330C1 | brake coil 110-125V |
 |
AF-OT81223 | TAB260B49 18ATF
ZAA260AK3 |
deflector sheave
(D750mm x5 groove x13mm rope) (D575mm x5 groove x10mm rope) |
 |
AF-OT80543E | 18ATF | traction sheave
D754 x 6 x 13 mm |
 |
AF-OT80659B | 18ATF | host machine brake pad |
 |
AF-OT80543G | 18ATF TAB260B2 | traction sheave

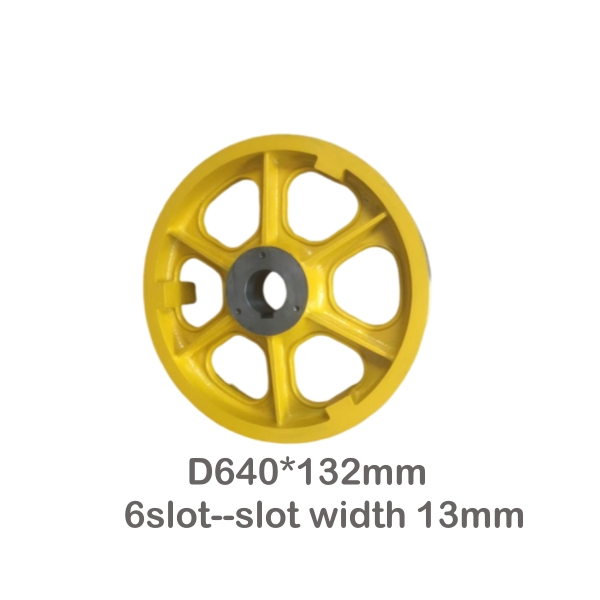

D640*132 6 groove,width 13mm |
 |
AF-OT80743C | 18ATF | traction sheave bearing |
 |

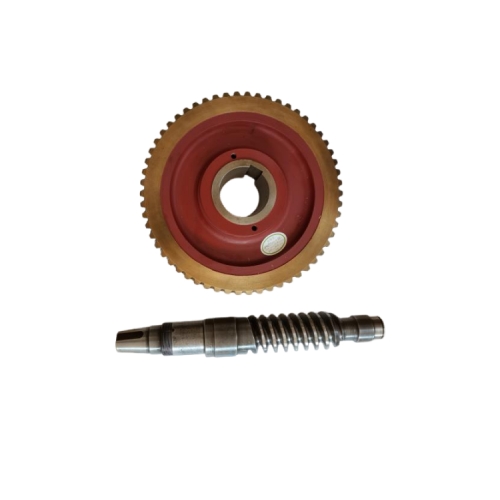

AF-OT80743D | 18ATF | 18ATF traction machine turbine |
