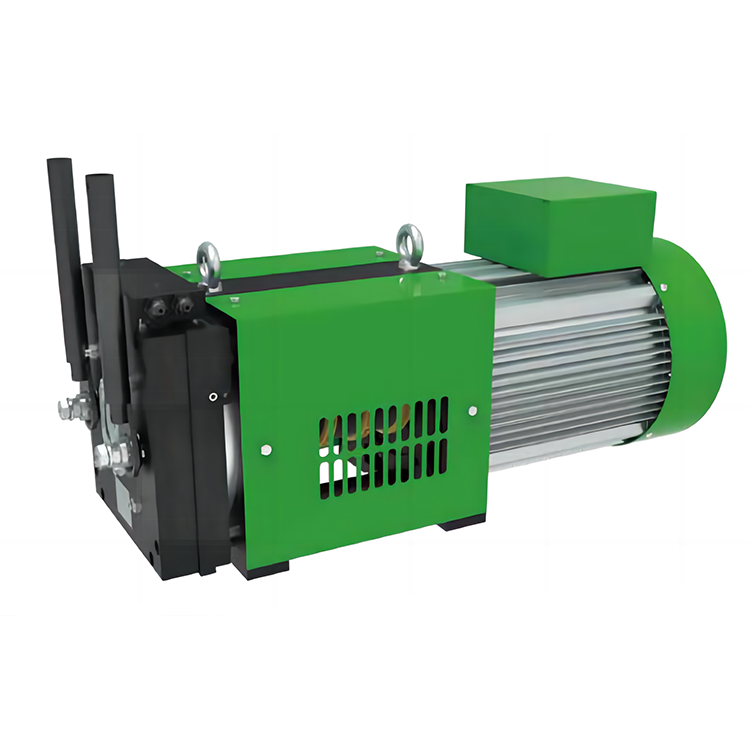

1000kg Elevator Lift Grooved Belt Passenger Traction Machine

Product Name Elevator Grooved Belt Passenger Traction Machine
Type Elevator Spare Parts
AF-ID NO. AF-GDX 132 – 1000
Model NO. AF-GDX 132 – 1000
Delivery Time 4-6 Working day
Delivery DHL,TNT,FedEx,Air,Sea
Payment T/T,Western Union,Paypal

Hot Product

Main Product

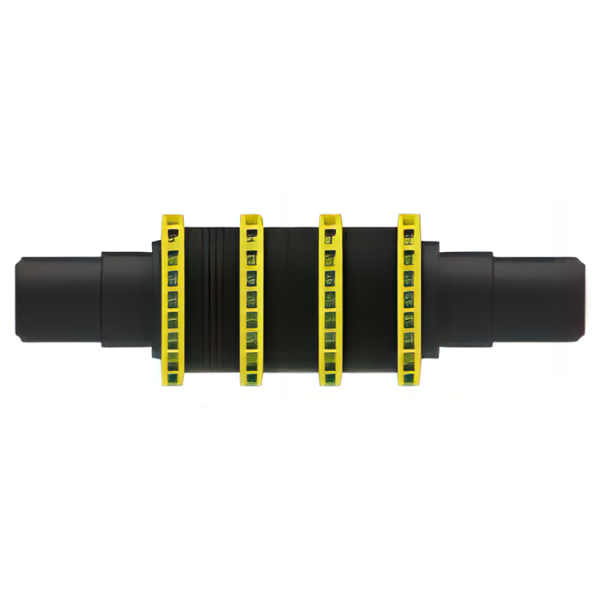

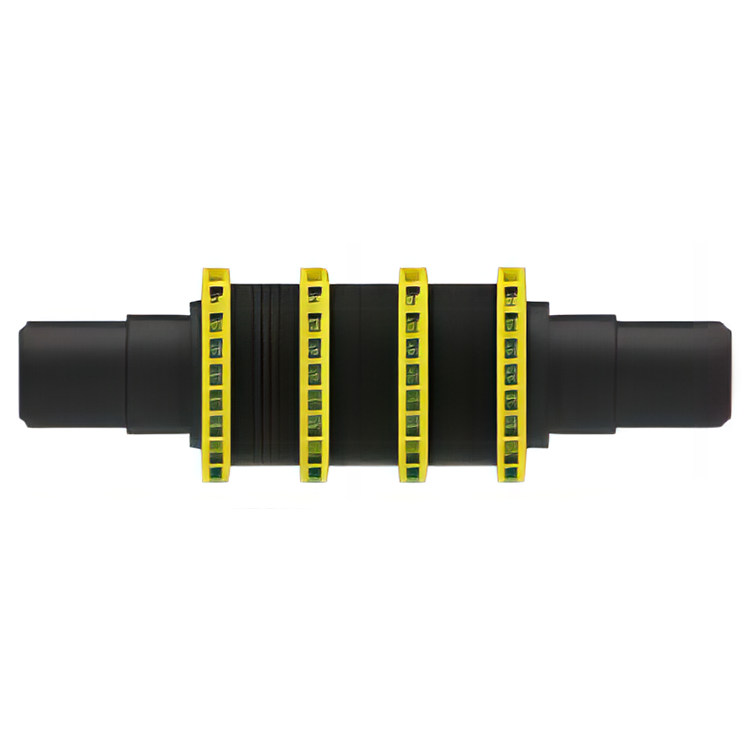

GDX machine need to work with GUDA grooved belt,Belt Clip, Counter Pulley, Belt Breaking Detect,

Bake Release, Belt Lock.

GENERAL DATA Load Lift speed Phase Voltage Sheave dia Poles Traction belt qty Rated power Rated speed Rated torque Frequency Rated Voltage Rated Current
GDX132-1000-10-34 1000kg 1m/s 3/380V 104mm 10P 3n 6.7kW 367r/min 174N·m 30.6Hz 331V 14.8A
GDX132-1000-16-34 1000kg 1.6m/s 3/380V 104mm 10P 3n 10.7kW 588r/min 174N·m 49Hz 336V 22.2A
GDX132-1000-17.5-34 1000kg 1.75m/s 3/380V 104mm 10P 3n 11.7kW 643r/min 174N·m 53.6Hz 339V 23.9A
GDX132-1000-20-34 1000kg 2m/s 3/380V 104mm 10P 3n 13.4kW 735r/min 174N·m 61.3Hz 326V 28.6A

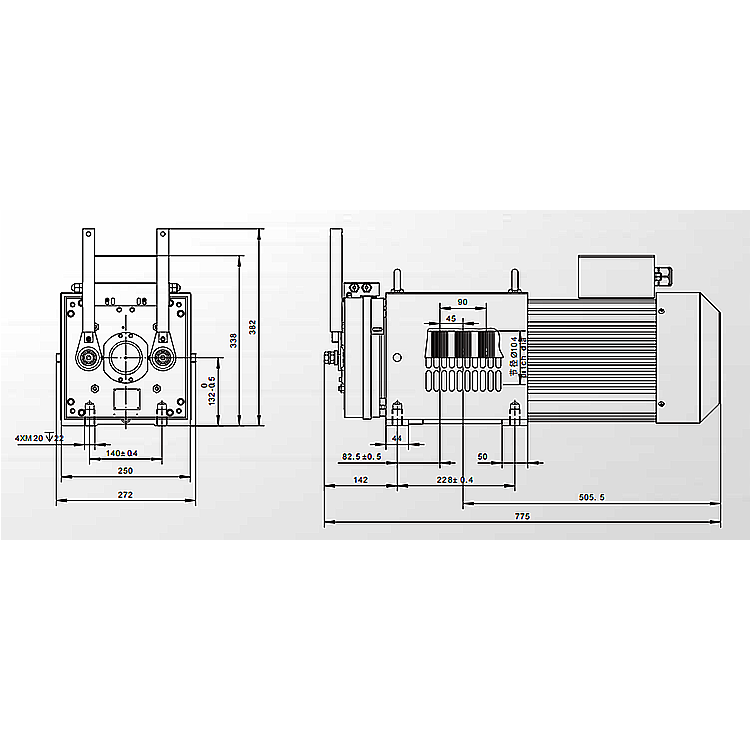

load 1000kg
Voltage 380V
Suspension 2:1
Center Height 132mm
Weight 170kg
Max.Static Load 4000kg
Brake DC110V 2*1.1A
Duty S5 40%

1000kg Elevator Lift Grooved Belt Passenger Traction Machine
